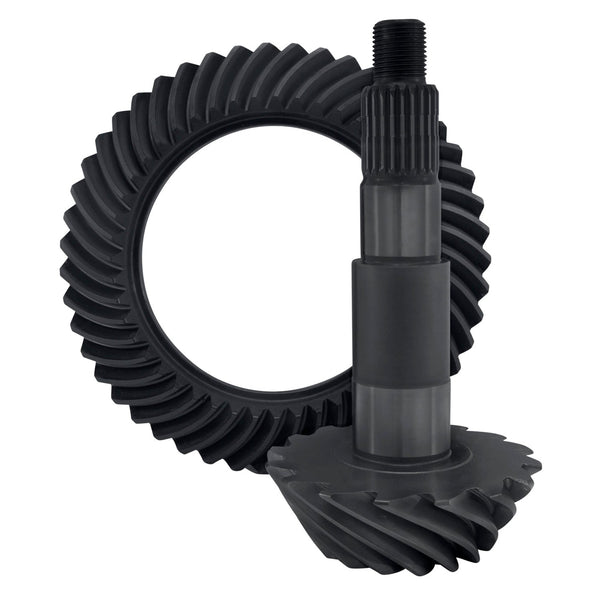

Super Dana 44 (226) - Ring & Pinion
(1) Ring and Pinion Gear Set (Choose Ratio Above)
- *Note: This gear set requires a 24 spline pinion yoke when replacing the factory 29 spline pinion used for 2004-2007 applications.
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Nissan Armada (2005-2015)
- Nissan Frontier (2003-2012)
- Nissan Pathfinder (2003-2012)
- Nissan Titan (2004-2015)
- Nissan Xterra (2003-2015)
- Suzuki Equator (2009-2012)
- Differential Model: Super Dana 44 (226)
- Cover Bolt Quantity: 12
- Carrier Breaks: None
- Carrier/Axle Spline Count: 32
- Ring Gear Diameter: 8.89”
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Quantity: 10
- Ring Gear Bolt Size: 1/2" X 20 RH
- Pinion Diameter: 1.625"
- Pinion Spline: 24
