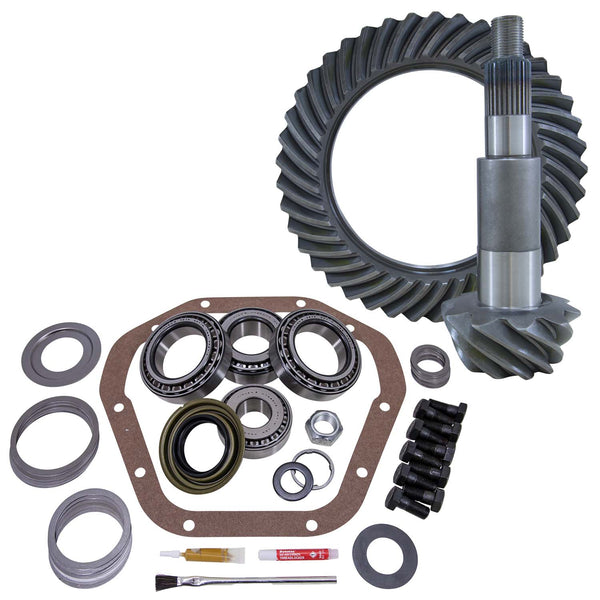

Dodge Dana 70U - Gear Package
(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Bearing Install Kit
- *Note: The Dana 70 has a carrier break at 4.10 & numerically lower/ 4.56 & numerically higher. That means if you have 3.54-3.73 ratios from the factory, and would like to run 5.13-5.86 ratios, you will need to buy a new carrier. Contact support if you need help figuring out what carrier you have.
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) Pinion Bearings and Races
- Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve
- Complete Shims
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Dodge B350 Dodge Van 1 Ton (1981-1994)
- Dodge W250 3/4 Ton 4x4 (1984-1993)
- Dodge Ram 2500 3/4 Ton (1994-2002)
- Dodge Ram 3500 1 Ton (1994-2002)
- Dodge D250 2wd 3/4 Ton (1984-1993)
- Dodge D350 2wd 1 Ton (1981-1993)
- Dodge W350 1 Ton 4x4 (1984-1993)
- Dodge Ram Van 3500 1 Ton (1984-2003)
- Dodge D300 2wd 1 Ton (1985-1993)
- Dodge Ram Van 2500 3/4 Ton (1984-2003)
- Dodge B300 Dodge Van 1 Ton (1970-1980)
- Differential Model: Dana 70
- Cover Bolt Quantity: 10
- Carrier Breaks: 4.10 & Numerically Lower, 4.56 & Numerically Higher
- Carrier/Axle Spline Count: 32 or 35
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 10.5"
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Size: 1/2" x 20 RH
- Pinion Diameter: 1.75"
- Pinion Spline: 29
