1967-Up GM Dana 60 Differential Ring and Pinion Gear Set

$833.00 $341.13


D60-354-RA

Ring & Pinion Gear Set

Rigid Axle

Qty:
+ -

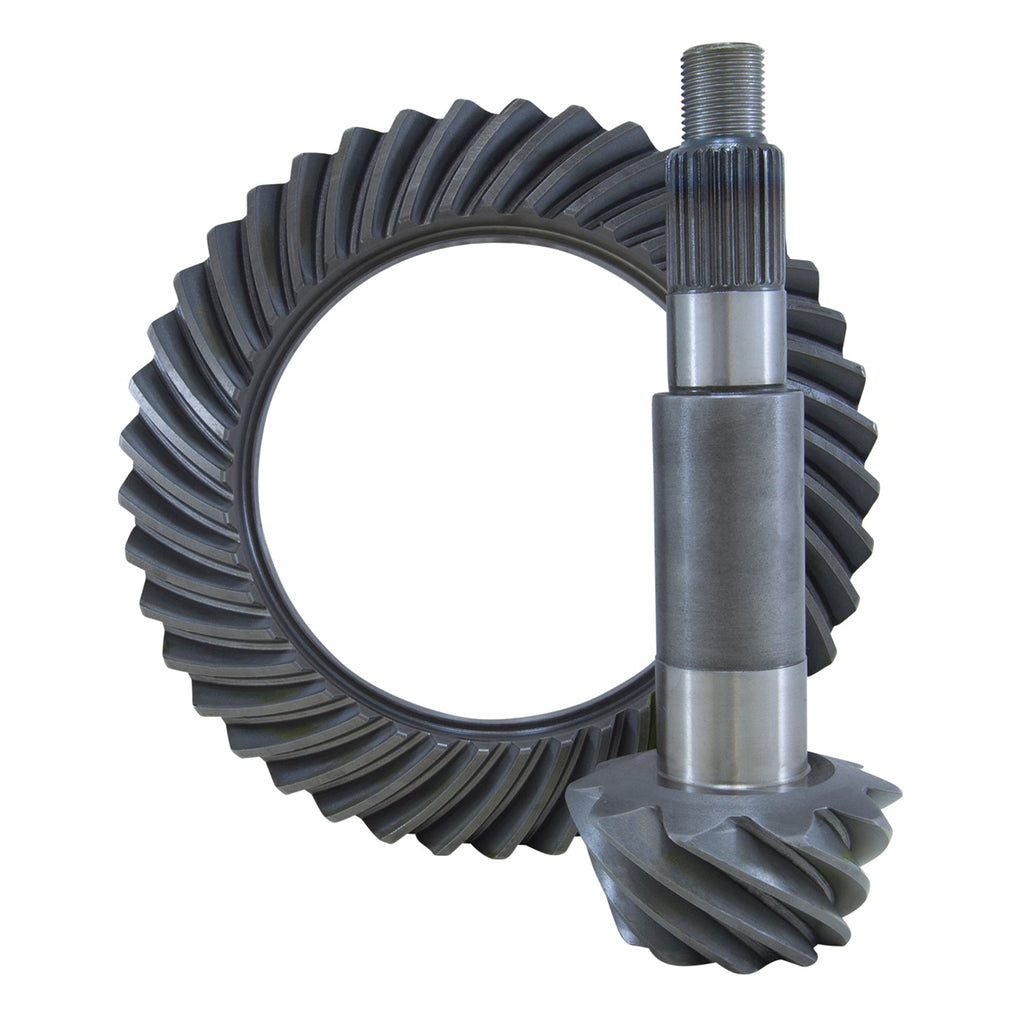

GM Dana 60 Ring and Pinion Gear Set

  Description

Package Includes:

(1) Dana 60 Ring and Pinion Gear Set (Choose Ratio Above)


- *Note: The Dana 60 has a carrier break at 4.10 / 4.56. That means if you have 3.73 or numerically lower ratio from the factory, and would like to run a 5.38 ratio, you will need to buy a thick gear, or a new carrier. Contact support if you need help figuring out what carrier you have.

- If you just added a lift and tires, or you just want better stock performance out of your Dana 60 Differential, our gear set will get the job done. If you need help deciding on a gear ratio, please give us a call and we can help based on your needs!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • GMC C15/C1500 Pickup (1967-1972)
  • GMC C15/C1500 Suburban (1968-1972)
  • GMC C25/C2500 Pickup (1967-1972)
  • GMC C25/C2500 Suburban (1968-1972)
  • GMC G25 (1975-1978)
  • GMC G25/G2500 Van (1973-1974)
  • GMC G2500 (1979-1991)
  • GMC G35 (1975-1978)
  • GMC G35/G3500 Van (1973-1974)
  • GMC G3500 (1979-1991)
  • GMC K25/K2500 Pickup (1967-1972)
  • GMC K25/K2500 Suburban (1968-1972)
  • GMC K35 (1977-1978)
  • GMC K3500 (1979-1986)
  • GMC K3500 (1988-1991)
  • GMC Savana 2500 (2003-2013)
  • GMC Savana 3500 (2004-2010)
  • GMC V3500 (1987-1991)

  Dana 60 Specifics

  • Cover Bolt Quantity: 10 (12 on 2002-2013 Express Van)
  • Differential Carrier Break: 4.10 / 4.56
  • Differential Case Design Type: Dana 60
  • Pinion Shaft Diameter: 1.625 (Inch)
  • Pinion Spline Count: 29
  • Ring Gear Bolt Quantity: (12) 1/2 (Inch) X 20 RH
  • Ring Gear Diameter: 9.75 (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Standard
