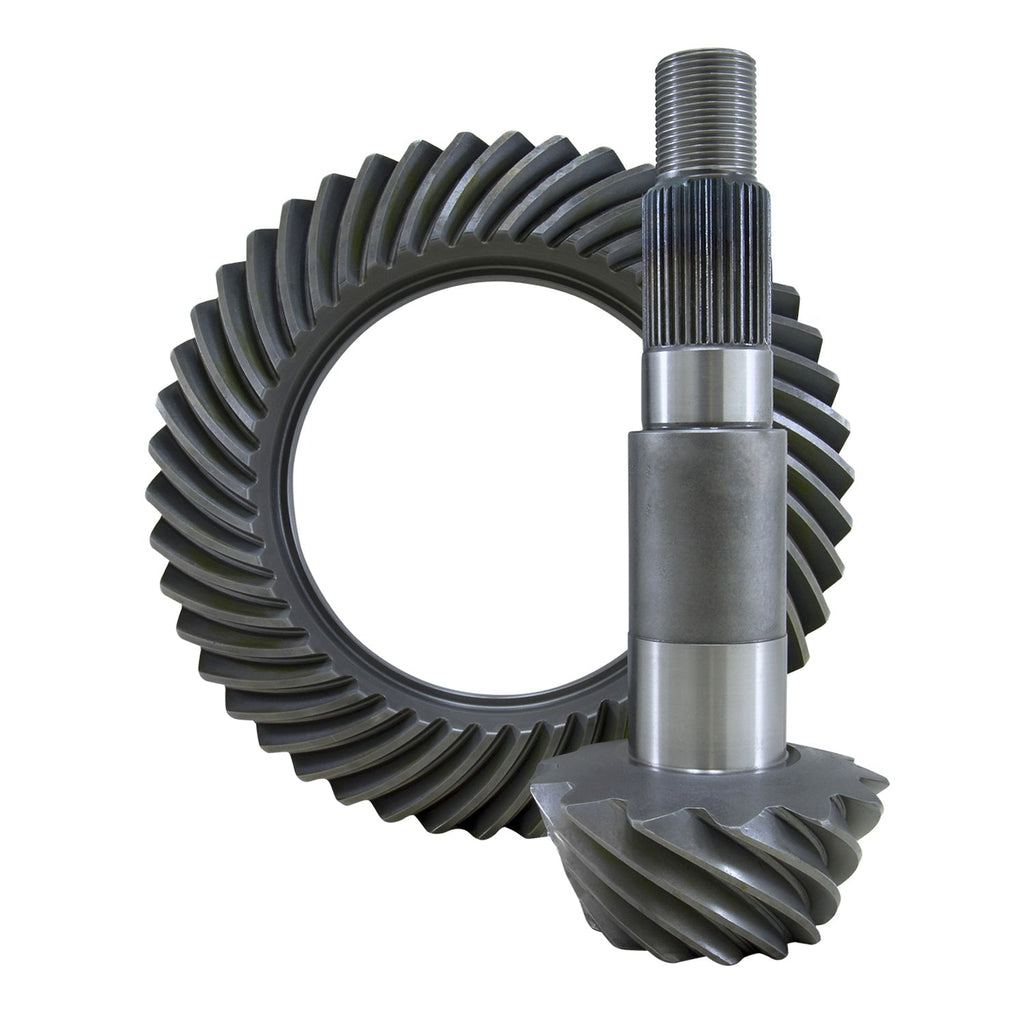

Chrysler Dana 80 - Ring & Pinion
(1) Ring and Pinion Gear Set (Choose Ratio Above)
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Dodge Ram 2500 3/4 Ton (1994-2002)
- Dodge Ram 3500 1 Ton (1994-2002)
- Dodge B3500 Dodge Van 1 Ton (1995-1998)
- Dodge Ram Van 2500 3/4 Ton (1999-2002)
- Differential Model: Chrysler Dana 80
- Cover Bolt Quantity: 12
- Carrier Breaks: 3.73 / 4.10
- Carrier/Axle Spline Count: 35
- Ring Gear Diameter: 11.25”
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Quantity: 12
- Ring Gear Bolt Size: 9.16" X 18 RH
- Pinion Diameter: 2.00"
- Pinion Spline: 37
