ClickCease 1992-2001 GM Dana 80 - Limited Slip Posi Package w/ Master Bearing Kit – Rigid Axle

$0.00(0)

1992-2001 GM Dana 80 - Limited Slip Posi Package w/ Master Bearing Kit

$3,042.42 $1,961.86


POSI-D80-3-35-RA D80-331-RA D80MK-A

Positraction, Gear & Install Package

Rigid Axle

Qty:
+ -

GM Dana 80 - Posi Package

  Description

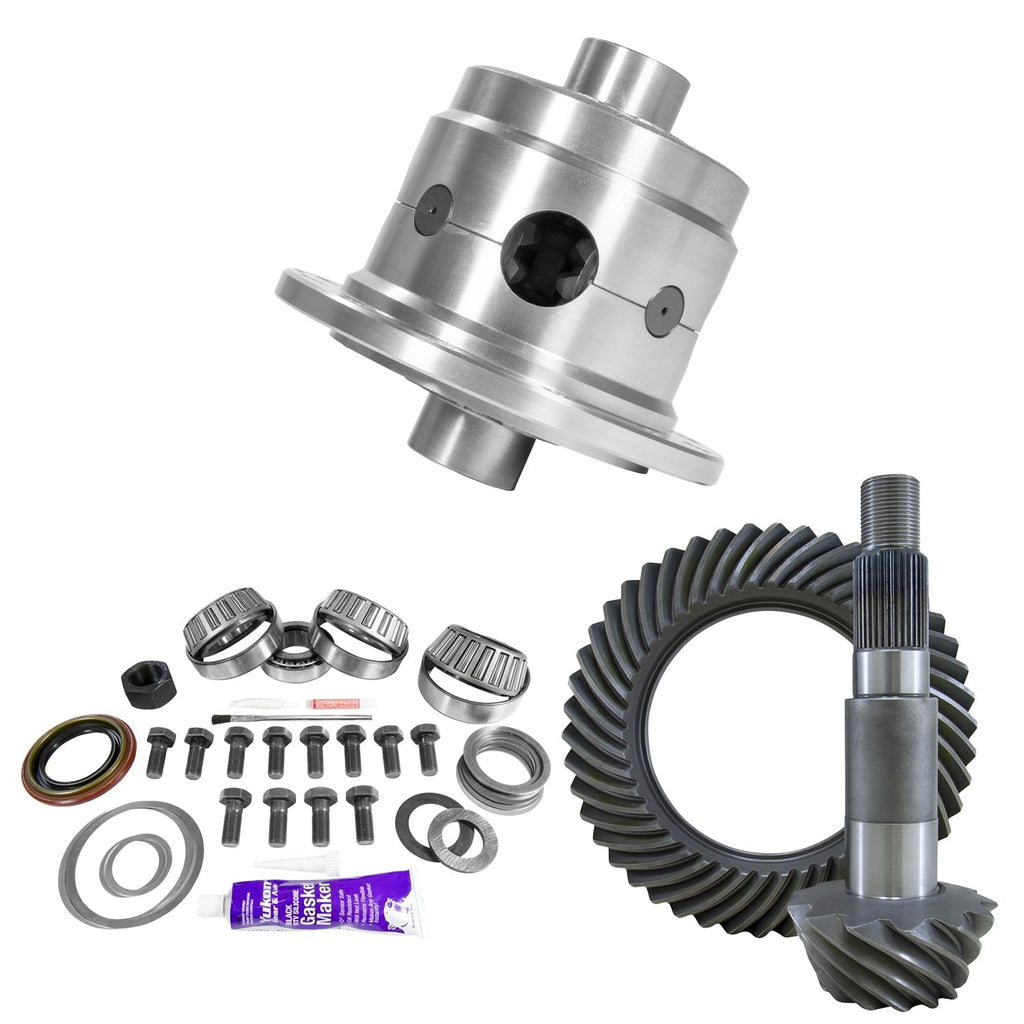

Package Includes:

(1) Limited Slip Positraction Carrier
(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Install Kit


- Our Rigid Axle Eaton style limited-slip positraction unit uses Raybestos composite clutches for smooth and aggressive traction. The carrier case is forged steel for strength and reliability. Because this carrier is an eaton style clutch posi, it can be rebuilt and serviced. Our Rigid Axle positraction is the perfect choice for daily drivers, weekend warriors, towing, basic off-road use, and street/strip applications. See below for some key features and tech specifications:

  • Fully Machined, High Strength Nodular Case
  • Raybestos Composite Clutches
  • Serviceable & Rebuildable Design
  • 1 Year Warranty against Manufacturer Defects
  • Non-Synthetic GL-5 Gear Oil Recommended
  • Friction Modifier Required

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
  • High Quality Koyo Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve and Preload Shims
  • Loctite
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Chevrolet / Chevy P3500 (1997-1999)
  • Chevrolet / Chevy C3500 (1992-2001)
  • Chevrolet / Chevy Express Van 3500 1 Ton (1996-2001)
  • Chevrolet / Chevy P30 1 Ton Van (1997-2001)
  • Chevrolet / Chevy G30 1 Ton (1992-1995)
  • Chevrolet / Chevy K30/ K3500 1 Ton (4WD) (1992-1998)
  • GMC K35/K3500 1 Ton (4WD) (1992-2000)
  • GMC C35/ C3500 1 Ton (2WD) (1992-2001)

  Specifics

  • Differential Model: GM Dana 80
  • Cover Bolt Quantity: 12
  • Carrier Breaks: 3.73 / 4.10
  • Carrier/Axle Spline Count: 35
  • Ring Gear Diameter: 11.25”
  • Ring Gear Rotation: Standard
  • Ring Gear Material: 8620 Steel
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Bolt Size: 9.16" X 18 RH
  • Pinion Diameter: 2.00"
  • Pinion Spline: 37
