ClickCease 1998-2016 Ford Dana 80 - Gear Package w/ Master Bearing Kit – Rigid Axle

$0.00(0)

1998-2016 Ford Dana 80 - Gear Package w/ Master Bearing Kit

$1,375.38 $733.37


D80-331-RA D80MK-B

Gear & Install Package

Rigid Axle

Qty:
+ -

Ford Dana 80 - Gear Package

  Description

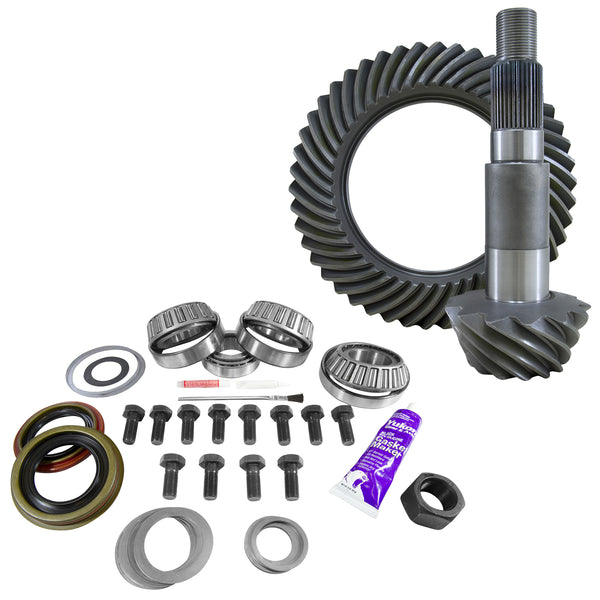

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Install Kit


- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
  • High Quality Koyo Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve and Preload Shims
  • Loctite
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Ford E-350 Club Wagon (2003-2005)
  • Ford E-350 Econoline (1999-2000)
  • Ford E-350 Econoline (2007-2008)
  • Ford E-350 Econoline Club Wagon (1999-2002)
  • Ford E-350 Super Duty (1999-2010)
  • Ford E-450 Econoline Super Duty (2000-2002)
  • Ford E-450 Super Duty (2003-2005)
  • Ford F-350 (1999-2009)
  • Ford F-350 (2011-2015)
  • Ford F-350 Super Duty (1999-2016)
  • Ford F-450 Super Duty (1999)

  Specifics

  • Differential Model: Ford Dana 80
  • Cover Bolt Quantity: 12
  • Carrier Breaks: 3.73 / 4.10
  • Carrier/Axle Spline Count: 35
  • Ring Gear Diameter: 11.25”
  • Ring Gear Rotation: Standard
  • Ring Gear Material: 8620 Steel
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Bolt Size: 9.16" X 18 RH
  • Pinion Diameter: 2.00"
  • Pinion Spline: 37
