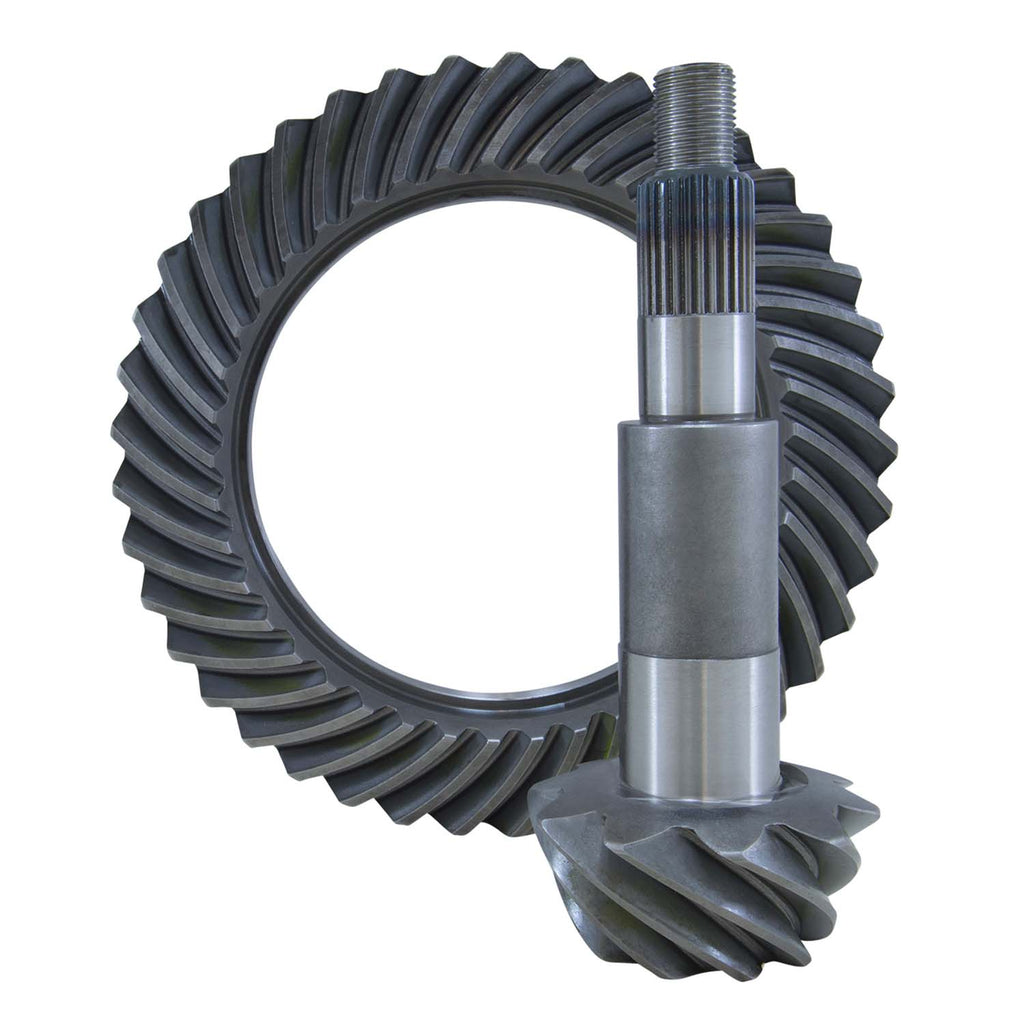

1978-2017 Ford Dana 70 Rear - Ring & Pinion Gear Set

$1,479.00 $312.67


D70-354-RA

Ring & Pinion Gear Set

Rigid Axle

Qty:
+ -

Ford Dana 70 - Ring & Pinion

  Description

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)


- *Note: This Dana 70 ring and pinion gear set fits the regular Dana 70, 70HD, and 70U rear differentials. The Dana 70 has a carrier break at 4.10 & numerically lower/ 4.56 & numerically higher. That means if you have 3.54-3.73 ratios from the factory, and would like to run 5.13-5.86 ratios, you will need to buy a new carrier. Contact support if you need help figuring out what carrier you have.

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Ford E-350 1 Ton (1975-2012)
  • Ford F-350 Super Duty 1 Ton (1999-2002)
  • Ford F-350 1 Ton (1970-1997)
  • Ford E-450 (2000-2010)


  Specifics

  • Differential Model: Dana 70
  • Cover Bolt Quantity: 10
  • Carrier Breaks: 4.10 & Numerically Lower, 4.56 & Numerically Higher
  • Carrier/Axle Spline Count: 32 or 35
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 10.5"
  • Ring Gear Rotation: Standard
  • Ring Gear Material: 8620 Steel
  • Ring Gear Bolt Size: 1/2" x 20 RH
  • Pinion Diameter: 1.75"
  • Pinion Spline: 29
