ClickCease 1968-1988 Jeep Dana 60 Differential Master Bearing Install Kit – Rigid Axle


1968-1988 Jeep Dana 60 Differential Master Bearing Install Kit

$319.74 $245.95


Differential Master Bearing Kit

Rigid Axle

+ -

Dana 60 Differential Master Overhaul Kit

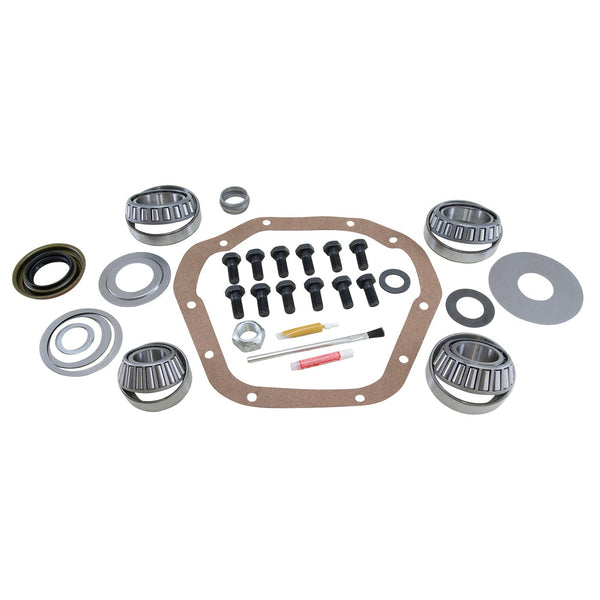

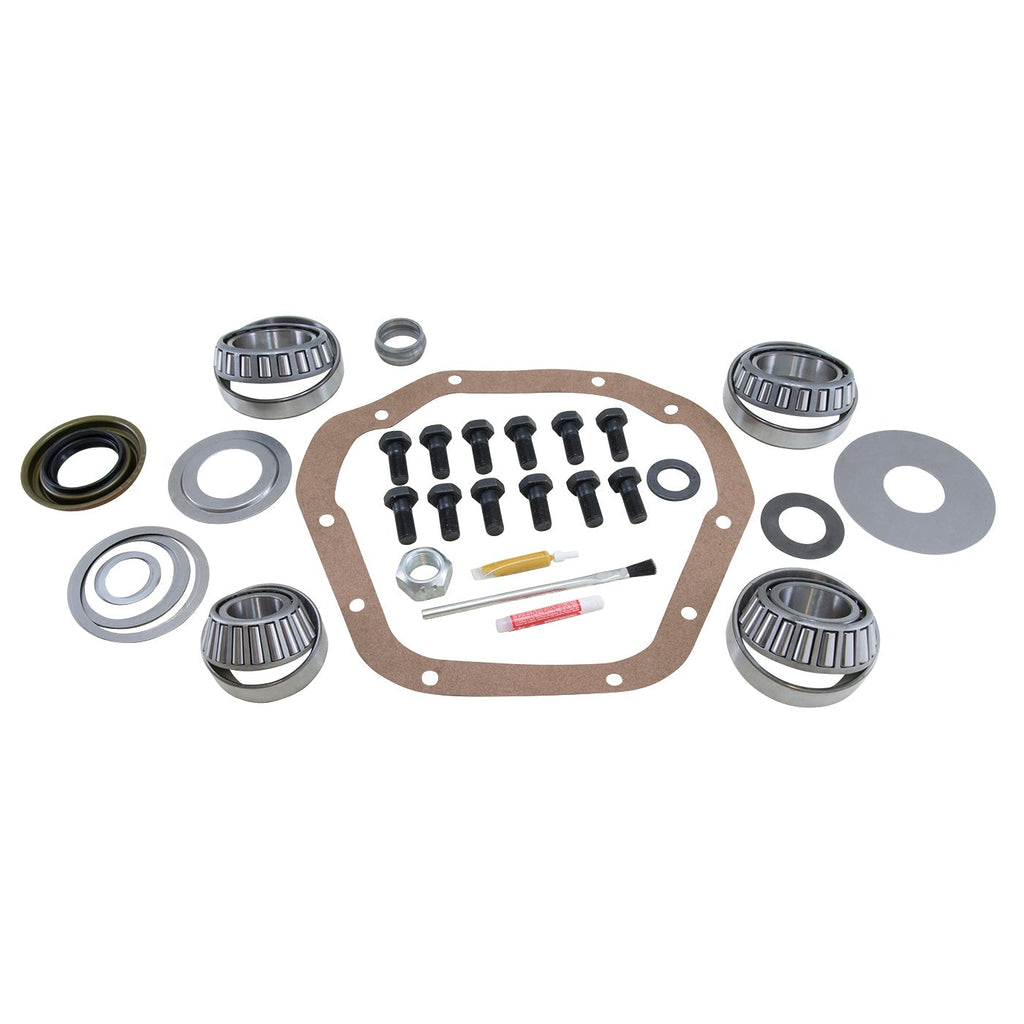

Package Includes:

(1) Rear Differential Master Bearing Install Kit

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) High Quality Pinion Bearings and Races
  • High Quality Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve and Preload Shims
  • Loctite
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!


  • Jeep J20 (1974-1988)
  • Jeep Wagoneer (1968-1976)

  Dana 60 Specifics

  • Cover Bolt Quantity: 10
  • Differential Carrier Break: 4.10 / 4.56
  • Differential Case Design Type: Dana 60
  • Pinion Shaft Diameter: 1.625 (Inch)
  • Pinion Spline Count: 29
  • Ring Gear Bolt Quantity: (12) 1/2 (Inch) X 20 RH
  • Ring Gear Diameter: 9.75 (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Standard

- Cross Reference: 324K, 697-106, 83-1034-1, K35-2034, RA29RMKT, XL-1034-1, ZK D60-F, ZK D60-R.
