1968-1988 Jeep Dana 60 Differential Gear Package w/ Master Bearing Kit
D60-354-RA D60MK-A
Gear & Install Package
Rigid Axle
Jeep Dana 60 Gear Package
Description

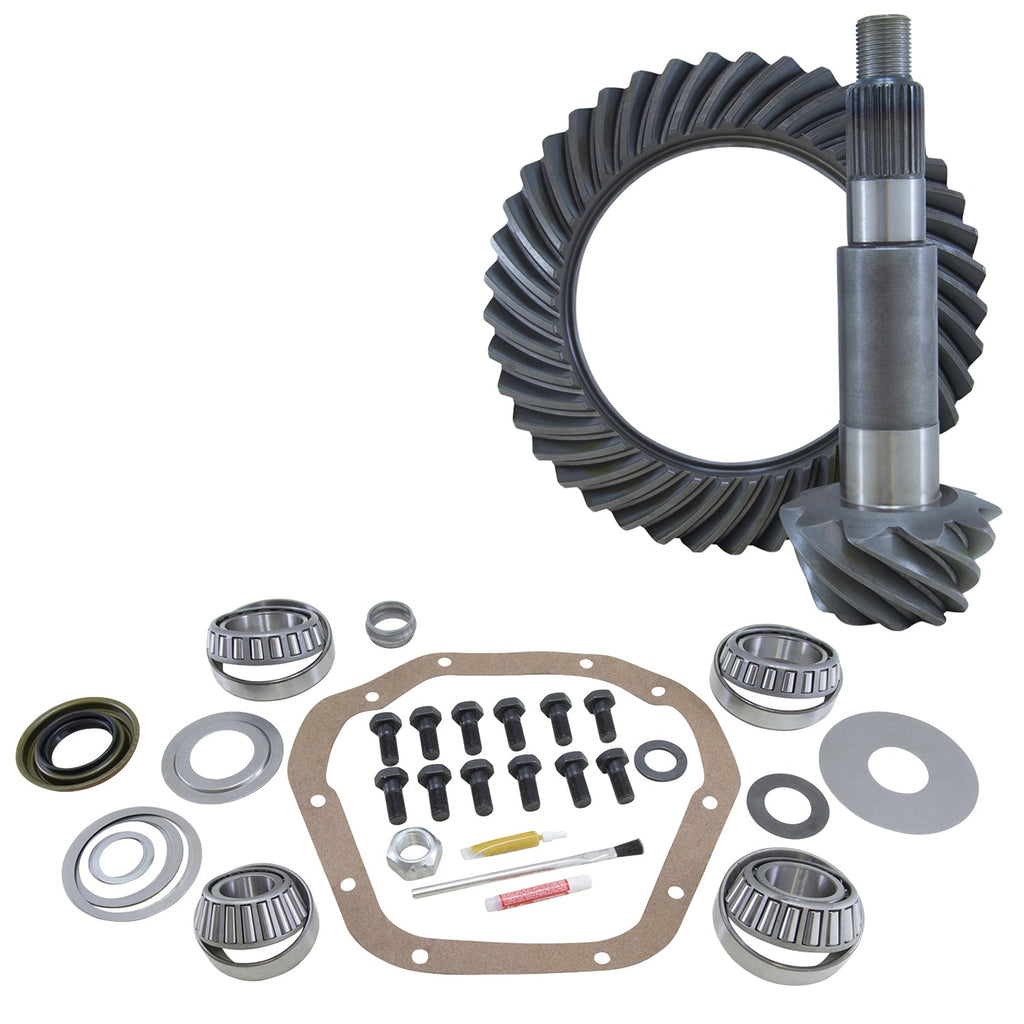

Package Includes:
(1) D60 Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Bearing Install Kit
- *Note: The Dana 60 has a carrier break at 4.10 / 4.56. That means if you have 3.73 or numerically lower ratio from the factory, and would like to run a 5.38 ratio, you will need to buy a thick ring and pinion, or a new carrier. Contact support if you need help figuring out what carrier you have.
- Our Rigid Axle gear package for the Dana 60 Differential comes complete with everything you need to regear. Whether you just added a lift and tires, or you want better stock performance out of your Dana 60 Differential, our gear package will get the job done. If you need help deciding on a gear ratio, please give us a call and we can build a custom kit for your needs!
- Remember to properly break in your new gear set! Click here for instructions!
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
- High Quality Koyo Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve and Preload Shims
- Loctite
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Jeep J20 (1974-1988)
- Jeep Wagoneer (1968-1976)
Dana 60 Specifics
- Cover Bolt Quantity: 10
- Differential Carrier Break: 4.10 / 4.56
- Differential Case Design Type: Dana 60
- Pinion Shaft Diameter: 1.625 (Inch)
- Pinion Spline Count: 29
- Ring Gear Bolt Quantity: (12) 1/2 (Inch) X 20 RH
- Ring Gear Diameter: 9.75 (Inch)
- Ring Gear Material: 8620 Steel
- Ring Gear Rotation: Standard
