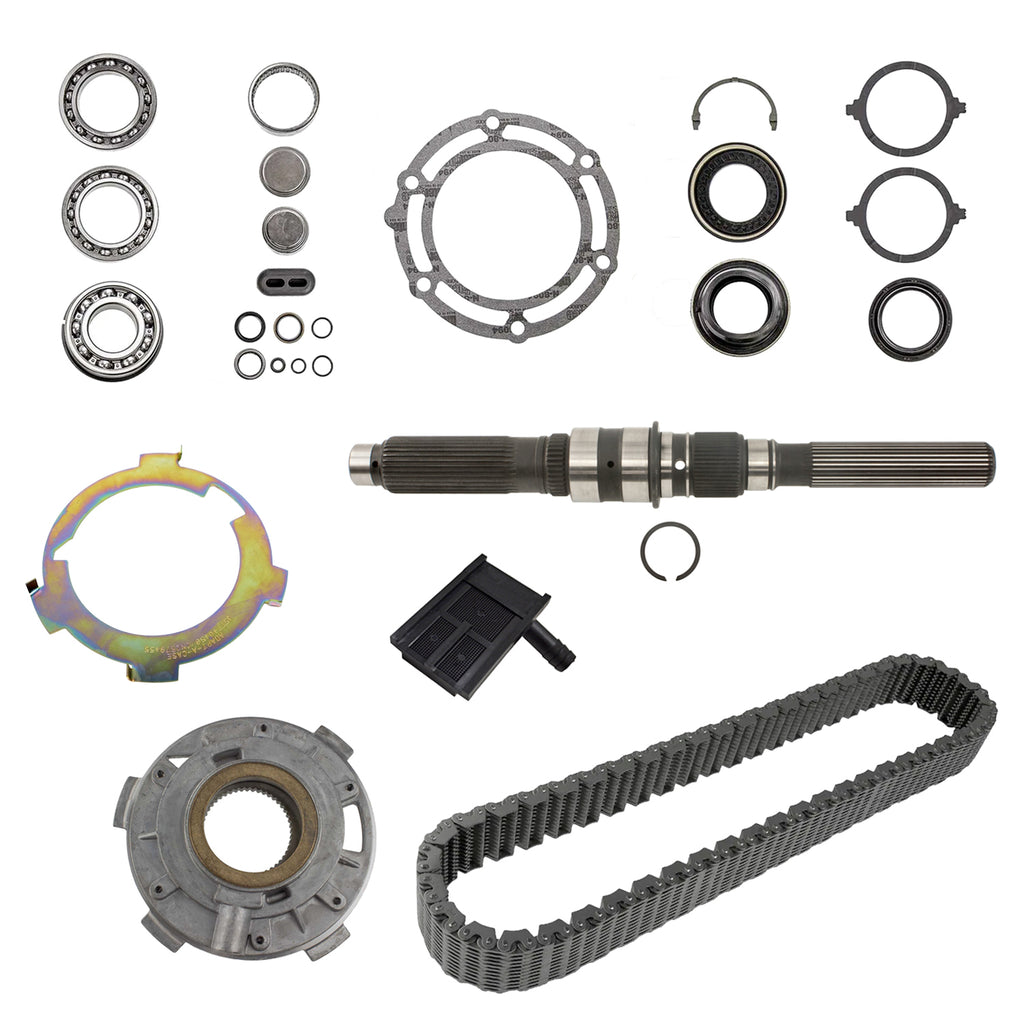

New Process Gear NP263 Heavy Duty Transfer Case Rebuild Package
(1) Bearing, Gasket, and Seal Rebuild Kit
(1) Transfer Case Chain
(1) Oil Pump Assembly
(1) Oil Pump Screen Filter
(1) HD Mainshaft
(1) Mainshaft Snap Ring
*XHD Chain Upgrade*
GM uses the XHD (eXtra Heavy Duty) transfer case to handle the massive torque numbers the Duramax and 8.1L Allison combos can create. If you want your HD transfer case to handle some extra abuse, we recommend upgrading to the XHD chain and sprockets while you have it apart. The XHD chain offers a 1.5" wide, 42 link, 84 pin design. That means noticeably larger and stronger links than its 49 link little brother. Make sure to select "Yes" under "XHD Chain Upgrade" before adding this kit to your cart!
- All Rigid Axle rebuild kits include case halves that come reinforced around the pump. The BRNY wear plate and Merchant Automotive pump upgrade kit are NOT needed. This will save you time and money! Our casting features a precisely machined oil pump seat that fixes the "pump rub" issue found on the OEM magnesium models. Your pump will no longer wear through the case causing leaks. Even though the BRNY transfer case wear plate is not required, it can be used for extra insurance and peace of mind. This casting also features strengthened ribs with 5mm more material. If that isn't enough, each case is 100% leak tested before it leaves our facility. Our case half comes with two threaded sensor ports, a sensor port plug in case your truck only requires one speed sensor, a tailshaft bushing already pressed in, and the output shaft needle bearing already installed. You are guaranteed to get a far superior product when ordering through Rigid Axle!
- Our rebuild kit includes a bearing, gasket, and seal kit with high quality Japanese bearings. No Chinese garbage anywhere in this kit. Included are all new internal bearings, input and output seals, all new o-rings, (2) planet thrust washers, range fork inserts, and a new tail housing snap ring grommet.
- The transfer case chain is the second biggest headache when you own one of these units. In our experience, the chains start to stretch around 160,000 to 200,000 miles. When the chain stretches a number of things can happen. One sign of a stretched chain is a loud popping sound heard when the transfer case is under load. That sound tells you the chain has stretched enough to skip on the teeth of the sprockets. At that point, not only are you eating up sprockets, but you're sending metal through your transfer case. Don't let metal go through your planetary or the cost of your rebuild just went up significantly!
- Wouldn't you be upset if you took your vehicle in for a full oil change and the mechanic didn't replace your oil filter? Well, we would. That's why we include a new oil pump filter screen with every NP261/NP263 kit that is sold with a new pump. Keep your transfer case protected and well lubricated with our pump and filter kit.
- Our mainshaft comes precisely ground for stability and proper bearing tolerances. It includes an updated snap ring to replace your old stock ring. If your transfer case was run out of oil and a bearing seized on your stock main shaft, it is crucial you replace it with this upgrade.
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Cadillac Escalade (1999-2000)
- Cadillac Escalade (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- Cadillac Escalade EXT (2002-2006)
- Chevrolet Avalanche (2007)
- Chevrolet Avalanche 1500 (2002-2006)
- Chevrolet Silverado 1500 (1999-2007)
- Chevrolet Silverado 1500 Classic (2007)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 2500 HD (2001-2006)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Suburban 1500 (2000-2007)
- Chevrolet Suburban 2500 (2000-2007)
- Chevrolet Tahoe (1999-2007)
- GMC Sierra 1500 (1999-2007)
- GMC Sierra 1500 Classic (2007)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 2500 HD (2001-2006)
- GMC Sierra 2500 HD Classic (2007)
- GMC Sierra 3500 (2001-2006)
- GMC Yukon (1999-2007)
- Transfer Case Model: New Process NP263HD GM
- Chain Width: 1.5 Inch
- Chain Link Count: 49 Links
- Chain Pin Count: 98 Pins
- Oil Pump Assembly: 49 Splines
