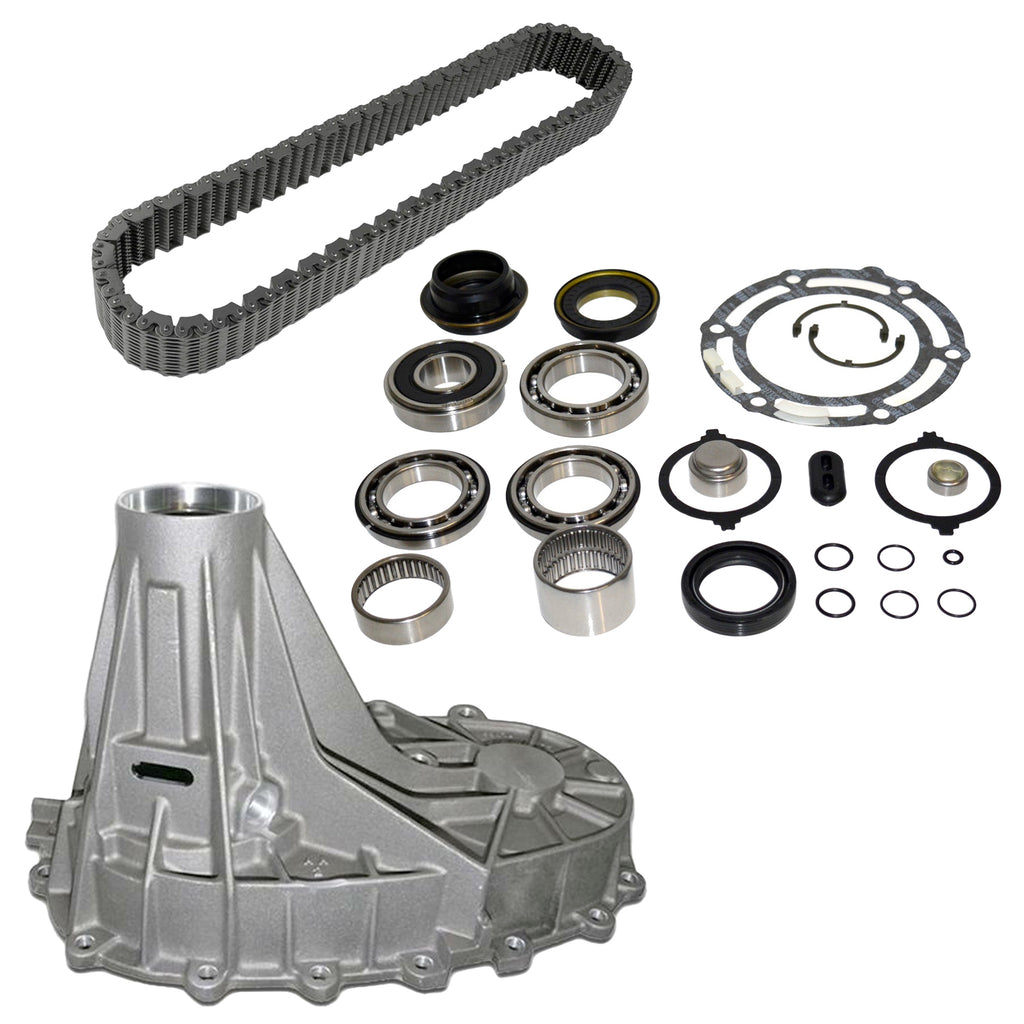

New Process NP246GM Transfer Case Rebuild Package
(1) NV246GM Rear Transfer Case Half
(2) Sensor Holes Already Threaded
(1) Tailshaft Bushing (Installed)
(1) Output Shaft Needle Bearing (Installed)
(1) Bearing, Gasket and Seal Rebuild Kit
(1) Range Fork Insert Kit
(1) Transfer Case Chain
- This transfer case package fits New Venture and New Process 246 transfer cases for GM Vehicles 1999-On. It is the buyers responsibility to verify they are working on a NP246GM. Please check the metal tag located on the rear case half. This is the highest quality, and most complete kit on the market. If you need a shift motor, apply plate, clutch wave spring, or anything else for these transfer cases, please message us so we can help!
- Our rebuild kit includes a bearing, gasket, and seal kit with high quality bearings. No garbage anywhere in this kit. Included are all new internal bearings, input and output seals, transfer case to transmission adaptor gasket, all new o-rings, (2) planet thrust washers, range fork inserts, and a new tail housing snap ring grommet.
- The transfer case chain is the second biggest headache when you own one of these units. In our experience, the chains start to stretch around 160,000 to 200,000 miles. When the chain stretches a number of things can happen. One sign of a stretched chain is a loud popping sound heard when the transfer case is under load. That sound tells you the chain has stretched enough to skip on the teeth of the sprockets. At that point, not only are you eating up sprockets, but you're sending metal through your transfer case. Don't let metal go through your planetary or the cost of your rebuild just went up significantly!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Cadillac Escalade (1999-2000)
- Cadillac Escalade EXT (1999-2000)
- Chevrolet Avalanche (2001-2007)
- Chevrolet Blazer (1999-2006)
- Chevrolet Silverado 1500 (1999-2007)
- Chevrolet Silverado 2500 (1999-2007)
- Chevrolet Silverado 3500 (1999-2007)
- Chevrolet Suburban (1999-2006)
- Chevrolet Tahoe (1999-2006)
- Transfer Case Model: New Process NP246GM
- Chain Width: 1.25 Inch
- Chain Link Count: 49 Links
- Chain Pin Count: 98 Pins
