GM 8.5" & 8.6" 10 Bolt Chevy - Ring and Pinion Gear Set - Front and Rear

$300.00 $198.25

GM8.5-308-RA

Ring & Pinion Gear Set

Rigid Axle

Qty:
+ -

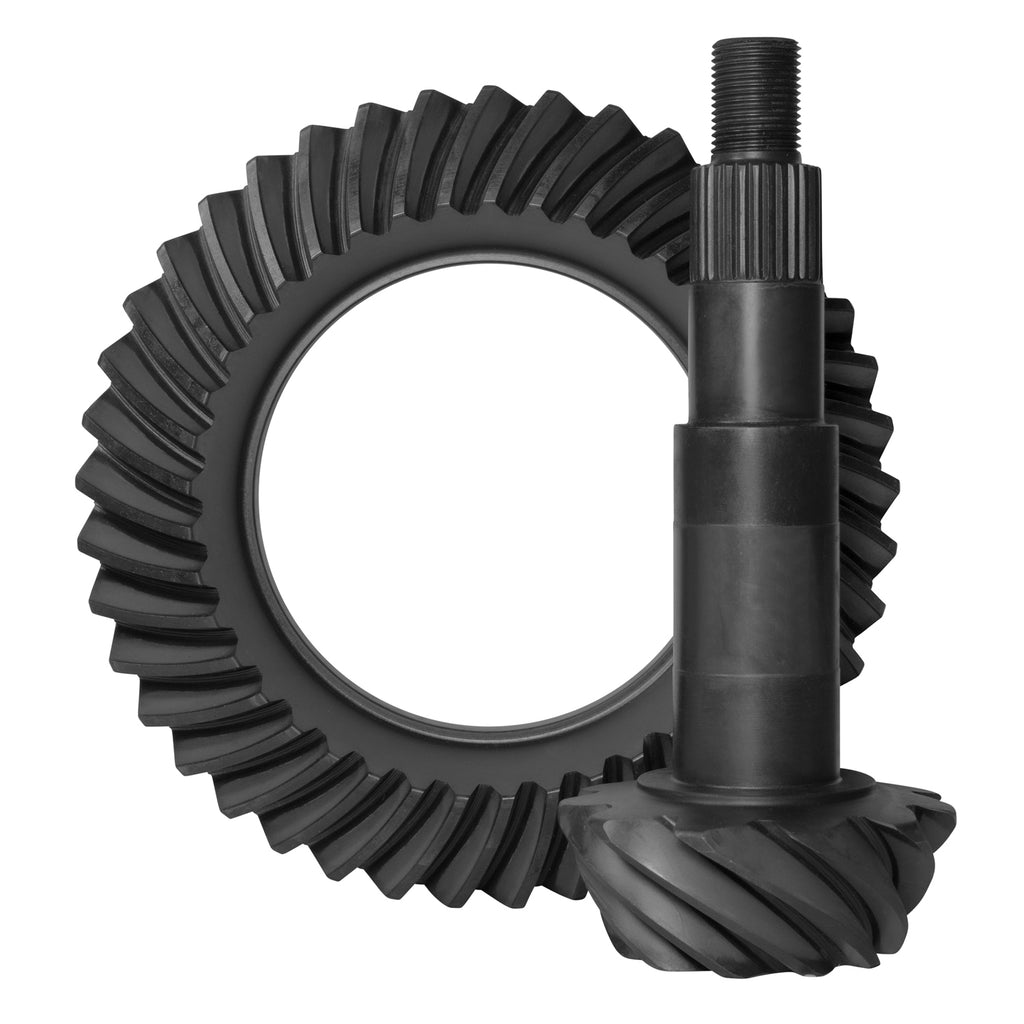

GM 8.5"/8.6" 10 Bolt Ring and Pinion Gear Set

  Description

Package Includes:

(1) Ring and Pinion Gear Set

- Rigid Axle's OE Dry 2-Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2-Cut ring and pinions are made using a two-cut, face hobbed manufacturing process. The advantage to running a 2-Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2-Cut gear set! When these gears are set up properly and rolled with gear marking compound, the pattern will show up slanted. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Buick Apollo (1973 - 1975)
  • Buick Electra (1971 - 1989)
  • Buick Rainier (2004 - 2007)
  • Buick Regal (1973 - 1987)
  • Buick Riviera (1975 - 1978)
  • Buick Skylark (1970 - 1979)
  • Cadillac Escalade (1999 - 2013)
  • Chevrolet / Chevy Avalanche 1500 (2002 - 2013)
  • Chevrolet / Chevy Bel Air (1970 - 1975)
  • Chevrolet / Chevy Blazer (1977 - 1994)
  • Chevrolet / Chevy C10 1/2 Ton (2WD) (1979 - 1987)
  • Chevrolet / Chevy C1500 1/2 Ton (2WD) (1988 - 1999)
  • Chevrolet / Chevy C2500 3/4 Ton (2WD) (1989 - 2000)
  • Chevrolet / Chevy Camaro (1970 - 1981)
  • Chevrolet / Chevy Caprice (1970 - 1996)
  • Chevrolet / Chevy Chevelle/ Malibu (1973 - 1973)
  • Chevrolet / Chevy Colorado (2004 - 2013)
  • Chevrolet / Chevy El Camino (1971 - 1976)
  • Chevrolet / Chevy Express Van 1500 1/2 Ton (1996 - 2015)
  • Chevrolet / Chevy G10 1/2 Ton (1979 - 1995)
  • Chevrolet / Chevy G20 3/4 Ton (1975 - 1995)
  • Chevrolet / Chevy Impala (1971 - 1996)
  • Chevrolet / Chevy K10/ K1500 1/2 Ton (4WD) (1977 - 1999)
  • Chevrolet / Chevy K20/K2500 3/4 Ton (4WD) (1977 - 1991)
  • Chevrolet / Chevy K5 Blazer (4WD) (1977 - 1991)
  • Chevrolet / Chevy Malibu (1973 - 1983)
  • Chevrolet / Chevy Monte Carlo (1973 - 1978)
  • Chevrolet / Chevy Nova (1970 - 1979)
  • Chevrolet / Chevy S10 Blazer / Pickup (1994 - 2005)
  • Chevrolet / Chevy Silverado 1500 1/2 Ton (1999 - 2019)
  • Chevrolet / Chevy SSR (2003 - 2006)
  • Chevrolet / Chevy Suburban 1/2 Ton (1977 - 2013)
  • Chevrolet / Chevy Suburban 3/4 Ton (1977 - 1990)
  • Chevrolet / Chevy Tahoe 1500 1/2 Ton (1995 - 2019)
  • Chevrolet / Chevy Trailblazer (1999 - 2012)
  • GMC C15/ C1500 1/2 Ton (2WD) (1979 - 1999)
  • GMC C25/ C2500 3/4 Ton (2WD) (1997 - 2000)
  • GMC Canyon (2004 - 2012)
  • GMC Envoy (2002 - 2009)
  • GMC G15/ G1500 1/2 Ton (1979 - 1995)
  • GMC G25/ G2500 3/4 Ton (1978 - 1995)
  • GMC K15/ K1500 1/2 Ton (4WD) (1977 - 1999)
  • GMC K25/ K2500 3/4 Ton (4WD) (1977 - 1991)
  • GMC S15 Jimmy / Pickup (1994 - 2005)
  • GMC Savana 1500 1/2 Ton (1996 - 2013)
  • GMC Savana 2500 3/4 Ton (1996 - 1998)
  • GMC Sierra 1500 1/2 Ton (1999 - 2019)
  • GMC Sierra Denali (1999 - 2013)
  • GMC Sonoma (1994 - 2004)
  • GMC Suburban 1/2 Ton (1977 - 2000)
  • GMC Suburban 3/4 Ton (1977 - 1990)
  • GMC Typhoon (1992 - 1993)
  • GMC Yukon 1500 1/2 Ton (1992 - 2013)
  • GMC Yukon XL 1500 1/2 Ton (2000 - 2013)
  • Hummer H3 (2005 - 2011)
  • Isuzu Ascender (2003 - 2008)
  • Oldsmobile Cutlass (1970 - 1987)
  • Oldsmobile Omega (1973 - 1979)
  • Plymouth Phoenix (1978 - 1979)
  • Pontiac Bonneville (1970 - 1986)
  • Pontiac Catalina (1970 - 1981)
  • Pontiac Firebird (1970 - 1981)
  • Pontiac Grand Prix (1971 - 1987)
  • Pontiac GTO (1970 - 1977)
  • Pontiac LeMans (1971 - 1983)
  • Pontiac Trans Am (1970 - 1981)
  • Pontiac Ventura (1976 - 1977)
  • Saab 9-7x (2005 - 2009)

  Specifics

  • Cover Bolt Quantity: 10
  • Differential Model: GM 8.5" & GM 8.625"
  • Pinion Shaft Diameter: 1.626 Inch
  • Pinion Spline Count: 30
  • Ring Gear Bolt Quantity: 10
  • Ring Gear Diameter: 8.5 Inch
  • Ring Gear Material: Heat Treated 8620 Steel
  • Ring Gear Rotation: Standard
