Ford 9" - 3.06" Carrier Bearings w/ Stock Support - Ring and Pinion Gear Set w/ Master Bearing Kit
F9-350-RA F9MK-B
Gear & Install Package
Rigid Axle
Ford 9" Gear & Install Package
Description

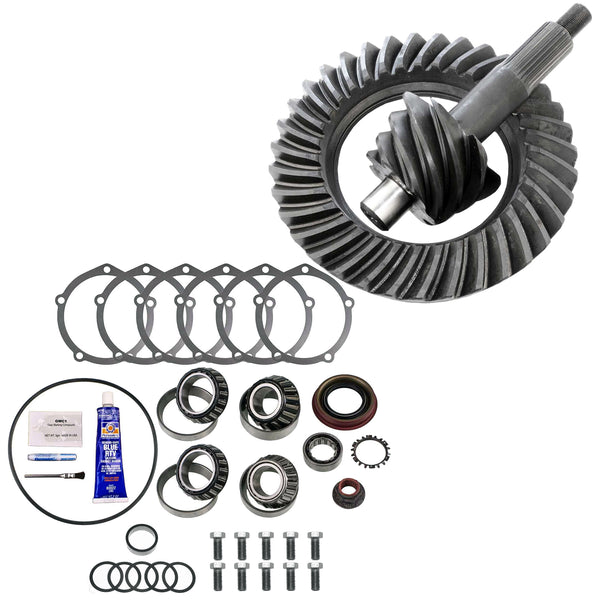

Package Includes:
(1) Ring and Pinion Gear Set
(1) Master Bearing Install Kit
- *Note: This master bearing kit fits Ford 9" with LM603011 carrier races (3.06" outer diameter) with stock support.
- Rigid Axle aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Each gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
- High Quality Koyo Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve and Preload Shims
- Loctite
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Ford Bronco (1966 - 1986)
- Ford E-100 1/2 Ton (1968 - 1983)
- Ford E-150 1/2 Ton (1979 - 1988)
- Ford E200 3/4 Ton (1968 - 1974)
- Ford E-250 3/4 Ton (1975 - 1980)
- Ford F-100 1/2 Ton (1957 - 1983)
- Ford F-150 1/2 Ton (1968 - 1987)
- Ford Fairlane (1957 - 1971)
- Ford Falcon (1960 - 1970)
- Ford Galaxie (1959 - 1974)
- Ford Granada (1975 - 1979)
- Ford LTD (1965 - 1979)
- Ford Maverick (1970 - 1978)
- Ford Mustang (1965 - 1973)
- Ford Ranchero (1957 - 1979)
- Ford Thunderbird (1955 - 1979)
- Ford Torino / Grand Torino (1968 - 1976)
- Lincoln Continental (1957 - 1979)
- Lincoln Mark III (1968 - 1971)
- Mercury Comet (1964 - 1977)
- Mercury Cougar (1967 - 1979)
- Mercury Grand Marquis (1975 - 1980)
Specifics
- Cover Bolt Quantity: Dropout
- Differential Model: Ford 9"
- Pinion Shaft Diameter: 1.313 Inch
- Pinion Spline Count: 28
- Ring Gear Bolt Quantity: 10
- Ring Gear Diameter: 9 Inch
- Ring Gear Material: Heat Treated 8620 Steel
- Ring Gear Rotation: Standard
