Chrysler 9.25" 12 Bolt - Ring and Pinion Gear Set

$332.20

C9.25-321-RA

Ring & Pinion Gear Set

Rigid Axle

Qty:
+ -

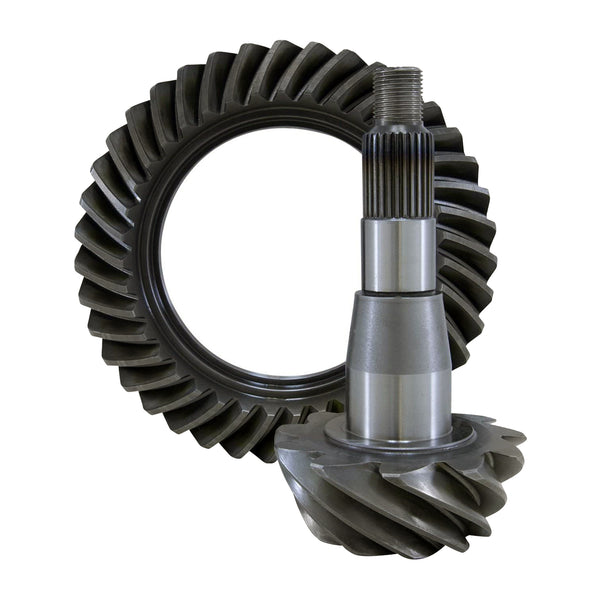

Chrysler 9.25" 12 Bolt Ring and Pinion

  Description

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)


- Rigid Axle's OE Dry 2-Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2-Cut ring and pinions are made using a two-cut, face hobbed manufacturing process. The advantage to running a 2-Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2-Cut gear set! When these gears are set up properly and rolled with gear marking compound, the pattern will show up slanted. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

* Note: Chrysler 9.25" ring gears may make contact with the OE housing. We recommend you clearance the housing to allow for a 0.020" gap. When running 4.56 or 4.88 ratio gear sets, OE and aftermarket carrier cross shafts will require clearancing in order to install the axle shaft c-clips. When running 3.21 - 4.10/4.11, no clearancing is required!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Chrysler Imperial (1974-1981)
  • Chrysler Aspen (2006-2009)
  • Chrysler New Yorker (1970-1982)
  • Dodge W350 1 Ton 4x4 (1981-1989)
  • Dodge Polara (1973-1973)
  • Dodge Ram Van 1500 1/2 Ton (1974-2003)
  • Dodge W200 3/4 Ton 4x4 (1969-1980)
  • Dodge D300 2wd 1 Ton (1974-1980)
  • Dodge Ram 1500 1/2 Ton (1994-Up)
  • Dodge Diplomat (1977-1989)
  • Dodge Ram Van 3500 1 Ton (1978-1993)
  • Dodge Magnum (1978-1983)
  • Dodge D200 2wd 3/4 Ton (1967-1980)
  • Dodge Durango (1998-2009)
  • Dodge B300 Dodge Van 1 Ton (1970-1980)
  • Dodge B350 Dodge Van 1 Ton (1981-1994)
  • Dodge D350 2wd 1 Ton (1981-1989)
  • Dodge B200 Dodge Van 3/4 Ton (1970-1981)
  • Dodge W150 1/2 Ton 4x4 (1977-1993)
  • Dodge Ram Van 2500 3/4 Ton (1974-2003)
  • Dodge Dakota (1997-2010)
  • Dodge Ram 2500 3/4 Ton (1994-2000)
  • Dodge B1500 Dodge Van 1/2 Ton (1995-1998)
  • Dodge B250 Dodge Van 3/4 Ton (1981-1994)
  • Dodge Charger (1968-1979)
  • Dodge W250 3/4 Ton 4x4 (1981-1993)
  • Dodge D150 2wd 1/2 Ton (1976-1993)
  • Dodge Ram Charger (1974-1993)

  Specifics

  • Cover Bolt Quantity: 12
  • Differential Model: Chrysler 9.25"
  • Carrier Spline Count: 31
  • Pinion Shaft Diameter: 1.876 Inch
  • Pinion Spline Count: 29
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 9.25 Inch
  • Ring Gear Material: Heat Treated 8620 Steel
  • Ring Gear Rotation: Standard
