Package Includes:

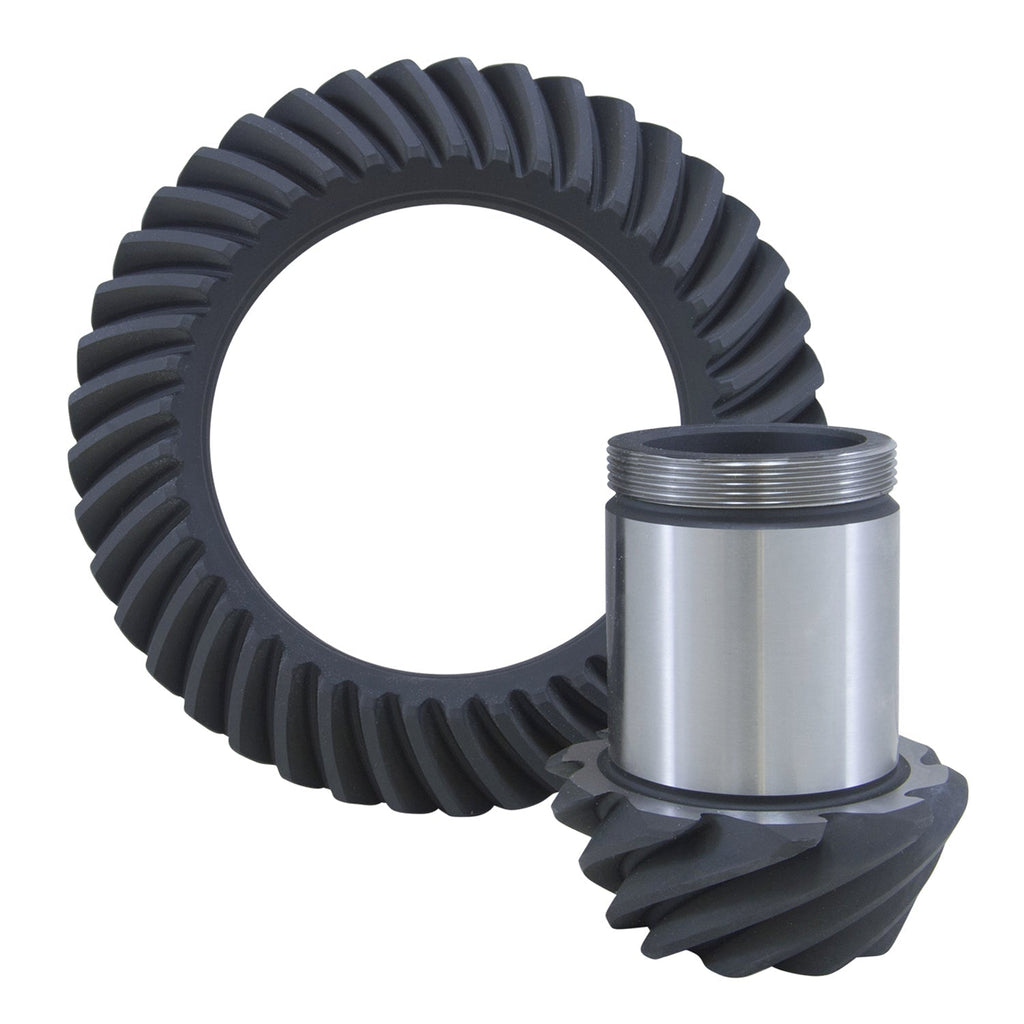

(1) Ring and Pinion Gear Set (Choose Ratio Above)

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Chevrolet Corvette (2006-2013)

• Differential Model: Getrag C6 Z06 Corvette
• Cover Bolt Quantity: 9
• Carrier Breaks: 2.73 / 3.15
• Carrier/Axle Spline Count: 41
• Ring Gear Diameter: 8.66”
• Ring Gear Rotation: Standard
• Ring Gear Material: 8620 Steel
• Ring Gear Bolt Quantity: 10
• Ring Gear Bolt Size: 3/8" X 24 RH
• Pinion Diameter: 2.535"
• Pinion Spline: 30
