Package Includes:

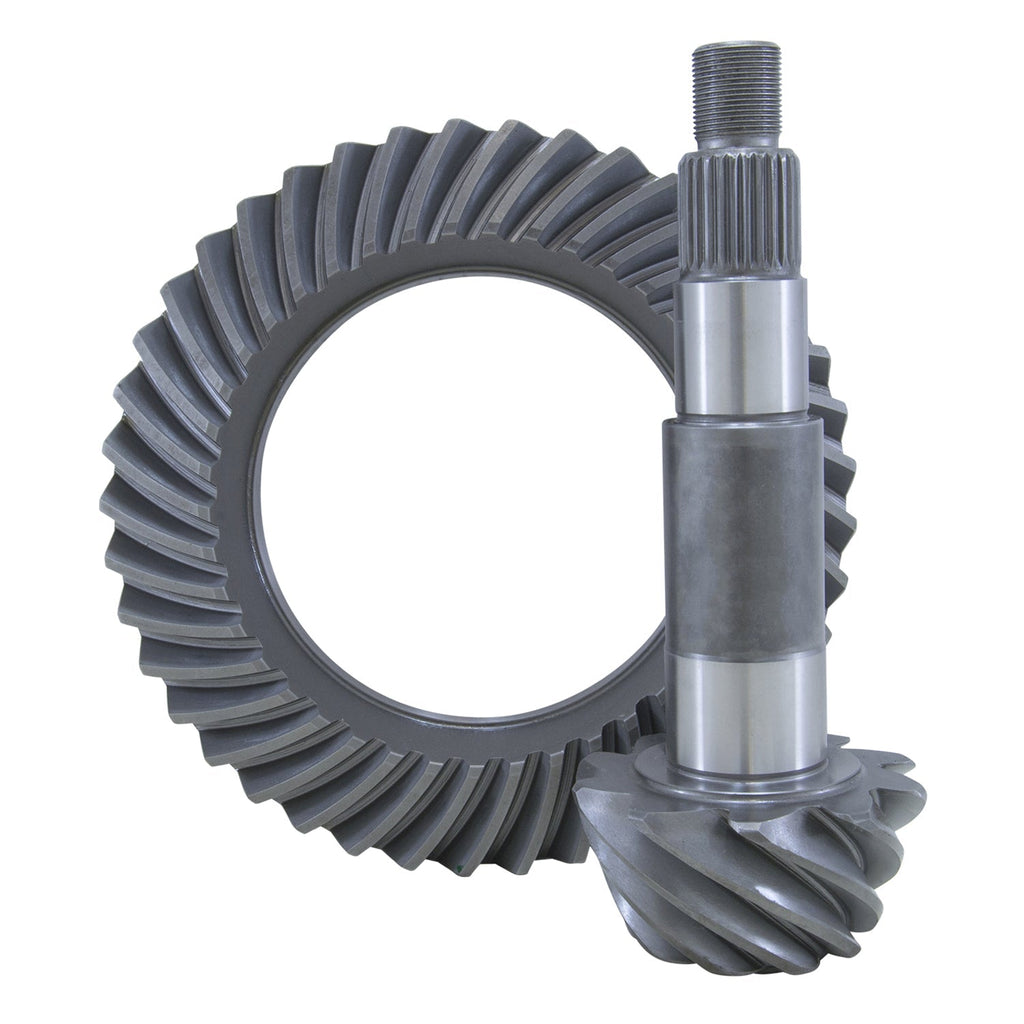

(1) Ring and Pinion Gear Set (Choose Ratio Above)

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• AM General Hummer (1992-2001)
• American Motors Ambassador (1967-1974)
• American Motors American (1967-1968)
• American Motors AMX (1968-1970)
• American Motors AMX (1978-1979)
• American Motors Concord (1978-1979)
• American Motors Gremlin (1972-1976)
• American Motors Hornet (1970-1977)
• American Motors Javelin (1968-1974)
• American Motors Marlin (1967)
• American Motors Matador (1971-1978)
• American Motors Pacer (1978-1979)
• American Motors Rambler (1969)
• American Motors Rebel (1967-1970)
• American Motors Spirit (1979)
• Hummer H1 (2002-2004)
• Hummer H1 (2006)
• Jeep Cherokee (1979-1983)
• Jeep CJ5 (1976-1983)
• Jeep CJ7 (1976-1986)
• Jeep Comanche (1986)
• Jeep Grand Wagoneer (1984-1986)
• Jeep J10 (1980-1986)
• Jeep Scrambler (1981-1985)
• Jeep Wagoneer (1979-1983)

• Differential Model: AMC Model 20
• Cover Bolt Quantity: 12
• Carrier Breaks: 2.73 / 3.08
• Carrier/Axle Spline Count: 29
• Ring Gear Diameter: 8.875”
• Ring Gear Rotation: Standard
• Ring Gear Material: 8620 Steel
• Ring Gear Bolt Quantity: 8
• Ring Gear Bolt Size: 7/16" x 20 RH
• Pinion Diameter: 1.625"
• Pinion Spline: 28
