GM 9.5" 12 Bolt Rear - Ring & Pinion

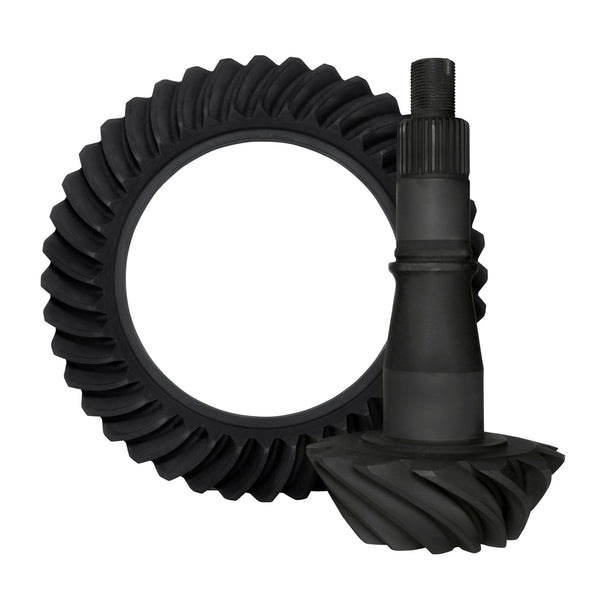

(1) Ring and Pinion Gear Set (Choose Ratio Above)
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Chevrolet Silverado 1500 (2014-2018)
- Chevrolet Suburban (2014-2018)
- Chevrolet Suburban 1500 (2014)
- Chevrolet Tahoe (2014-2018)
- GMC Sierra (2014-2018)
- GMC Sierra 1500 (2014-2018)
- GMC Yukon (2014-2018)
- GMC Yukon XL (2015-2018)
- GMC Yukon XL 1500 (2014)
- Differential Model: GM 9.5" 12 Bolt
- Cover Bolt Quantity: 12
- Carrier Breaks: 3.23 / 3.42
- Carrier/Axle Spline Count: 33
- Ring Gear Diameter: 9.5”
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Quantity: 12
- Ring Gear Bolt Size: 12MM x 1.5 LH
- Pinion Diameter: 1.876"
- Pinion Spline: 32
