2014-Up GM 9.5" 12 Bolt Rear - Gear Package w/ Master Bearing Kit

$1,041.12


GM9.5L-308-RA GM9.5MK-L

Gear & Install Package

Rigid Axle

Qty:
+ -

GM 9.5" 12 Bolt Rear - Gear Package

  Description

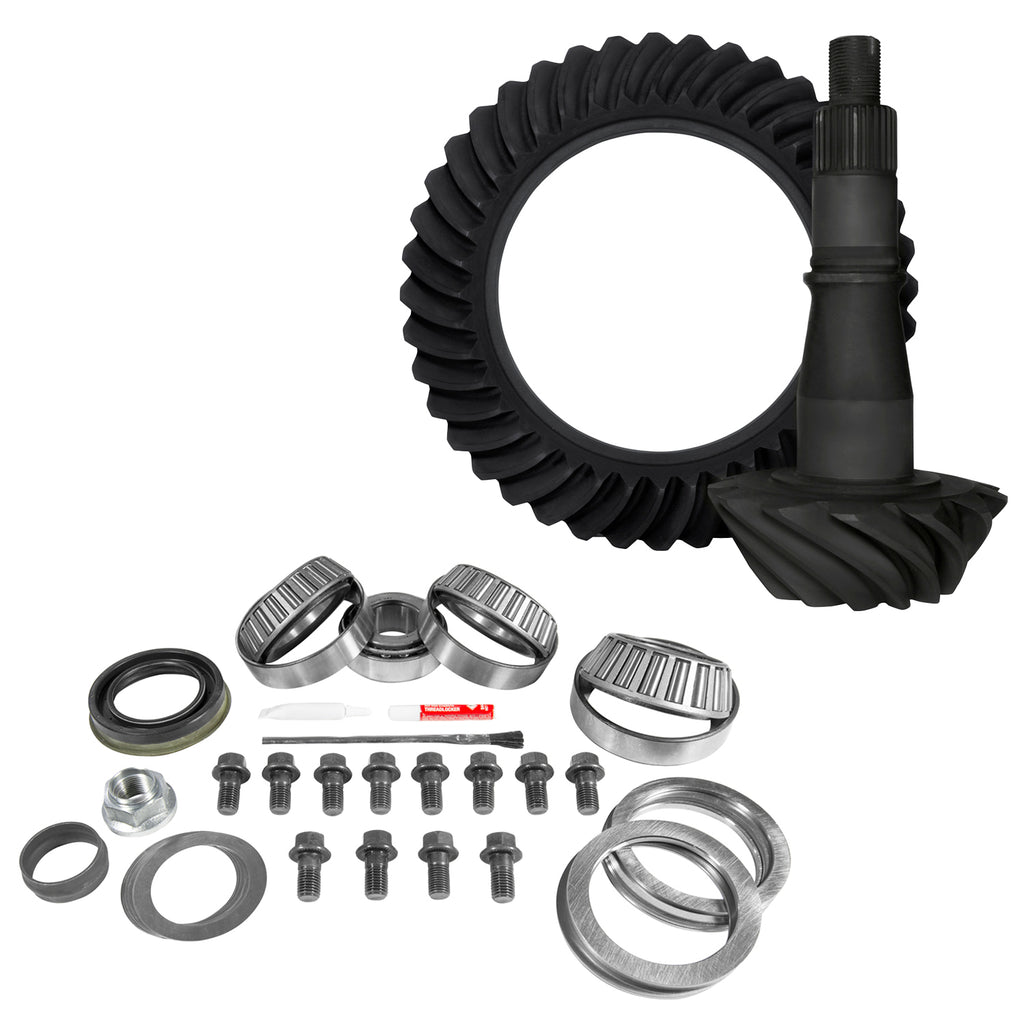

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Rear Master Bearing Install Kit


- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) Pinion Bearings and Races
  • Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve
  • Complete Shims
  • Threadlocker
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Cadillac Escalade (2014-2019)
  • Chevrolet / Chevy Silverado 1500 1/2 Ton (2014-2019)
  • Chevrolet / Chevy Tahoe 1500 1/2 Ton (2014-2019)
  • Chevrolet / Chevy Express Van 2500 3/4 Ton (2014-2019)
  • Chevrolet / Chevy Suburban 1/2 Ton (2014-2019)
  • Chevrolet / Chevy Suburban 3/4 Ton (2014-2019)
  • GMC Savana 1500 1/2 Ton (2014-2019)
  • GMC Savana 2500 3/4 Ton (2014-2019)
  • GMC Yukon XL 1500 1/2 Ton (2014-2019)
  • GMC Sierra 1500 1/2 Ton (2014-2019)
  • GMC Yukon 1500 1/2 Ton (2014-2019)
  • GMC Sierra Denali (2014-2019)
  • GMC Yukon 2500 3/4 Ton (2014-2019)
  • GMC Yukon XL 2500 3/4 Ton (2014-2019)

  Specifics

  • Differential Model: GM 9.5" 12 Bolt
  • Cover Bolt Quantity: 12
  • Carrier Breaks: 3.23 / 3.42
  • Carrier/Axle Spline Count: 33
  • Ring Gear Diameter: 9.5”
  • Ring Gear Rotation: Standard
  • Ring Gear Material: 8620 Steel
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Bolt Size: 12MM x 1.5 LH
  • Pinion Diameter: 1.876"
  • Pinion Spline: 32
