Chrysler 11.5" - Master Overhaul Kit

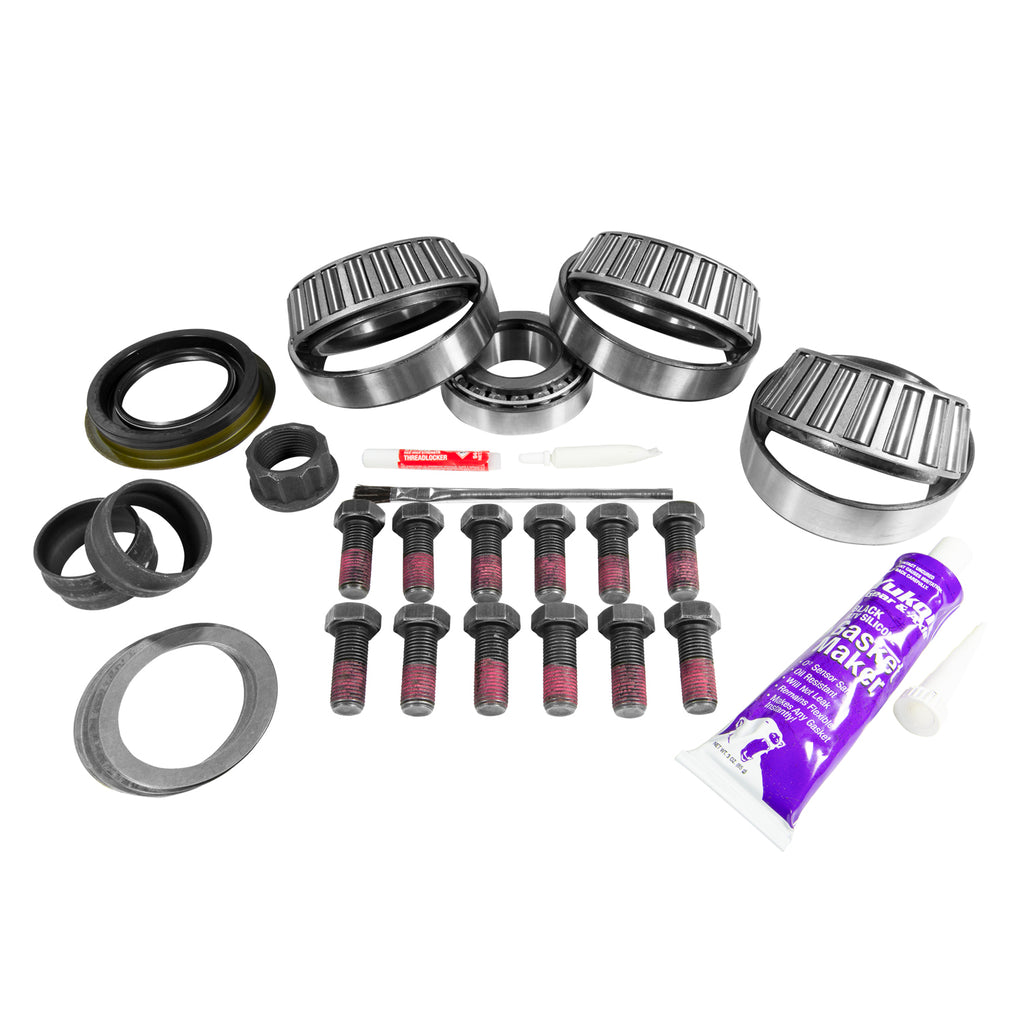

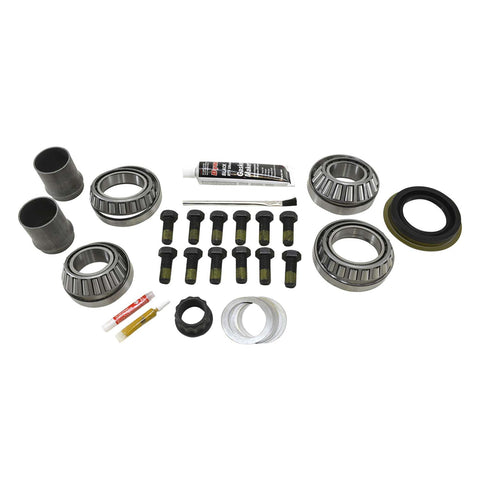

(1) Differential Master Bearing Install Kit
- *Note: This conversion master bearing kit fits the 2014-2016 Ram 2500 with Chrysler 11.5" rear differential and coil spring suspension. This kit allows the utilization of 2003-2013 ring and pinion gear set with smaller 2.00"/1.625" pinion journals. Contact support if you need help figuring out what differential you have.
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) Pinion Bearings and Races
- Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve
- Complete Shims
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Dodge Ram 2500 3/4 Ton (2014-2018)
- Differential Model: Chrysler 11.5"
- Cover Bolt Quantity: 14
- Carrier Breaks: None
- Carrier/Axle Spline Count: 30 or 38
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 11.5"
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Size: 14mm x 1.5 RH
- Pinion Diameter: 2.00"
- Pinion Spline: 30
- Cross Reference: 35-2024C, YK AAM11.5-CONV, ZK AAM11.5-C, R11.8RCONVMKT.
