2009-Up GM 8.5"/8.6" 10 Bolt Chevy - Ring and Pinion Gear Set w/ Master Bearing Kit

$239.95

GM8.5-308-RA GM8.6MK-B

Gear & Install Package

Rigid Axle

Ratio:
Qty:
+ -

2009-Up GM 8.625" 10 Bolt Gear Package

  Description

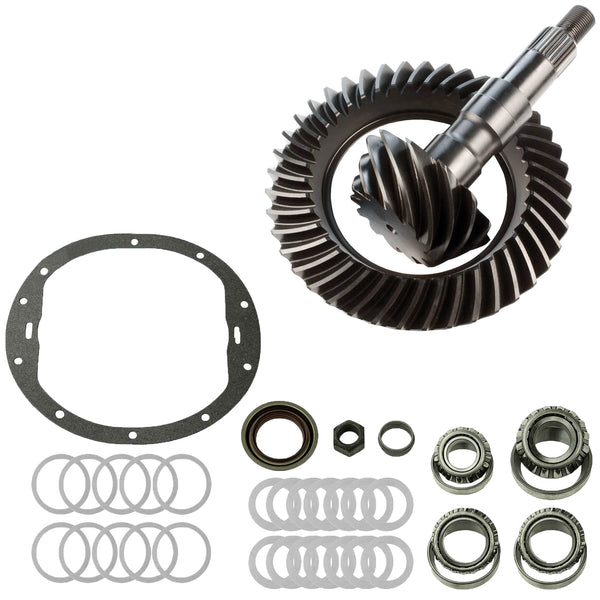

Package Includes:

(1) Ring and Pinion Gear Set
(1) Master Bearing Install Kit


- Rigid Axle aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Each gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
  • High Quality Koyo Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve and Preload Shims
  • Loctite
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Cadillac Escalade (2009 - 2013)
  • Chevrolet / Chevy Avalanche 1500 (2009 - 2013)
  • Chevrolet / Chevy Colorado (2009 - 2013)
  • Chevrolet / Chevy Express Van 1500 1/2 Ton (2009 - 2015)
  • Chevrolet / Chevy Silverado 1500 1/2 Ton (2009 - 2019)
  • Chevrolet / Chevy Suburban 1/2 Ton (2009 - 2013)
  • Chevrolet / Chevy Tahoe 1500 1/2 Ton (2009 - 2019)
  • Chevrolet / Chevy Trailblazer (2009 - 2012)
  • GMC Canyon (2009 - 2012)
  • GMC Envoy (2009 - 2009)
  • GMC Savana 1500 1/2 Ton (2009 - 2013)
  • GMC Sierra 1500 1/2 Ton (2009 - 2019)
  • GMC Sierra Denali (2009 - 2013)
  • GMC Yukon 1500 1/2 Ton (2009 - 2013)
  • GMC Yukon XL 1500 1/2 Ton (2009 - 2013)
  • Hummer H3 (2009 - 2011)
  • Saab 9-7x (2009 - 2009)

  Specifics

  • Cover Bolt Quantity: 10
  • Differential Model: GM 8.6"
  • Pinion Shaft Diameter: 1.626 Inch
  • Pinion Spline Count: 30
  • Ring Gear Bolt Quantity: 10
  • Ring Gear Diameter: 8.5 Inch
  • Ring Gear Material: Heat Treated 8620 Steel
  • Ring Gear Rotation: Standard
