Ford 10.5" - Master Overhaul Kit
(1) Differential Master Bearing Install Kit
- *Note: This master bearing install kit fits 2008-2010 Ford 10.5" 12 Bolt rear differential housings when using the older 10.25" ring and pinion gear sets.

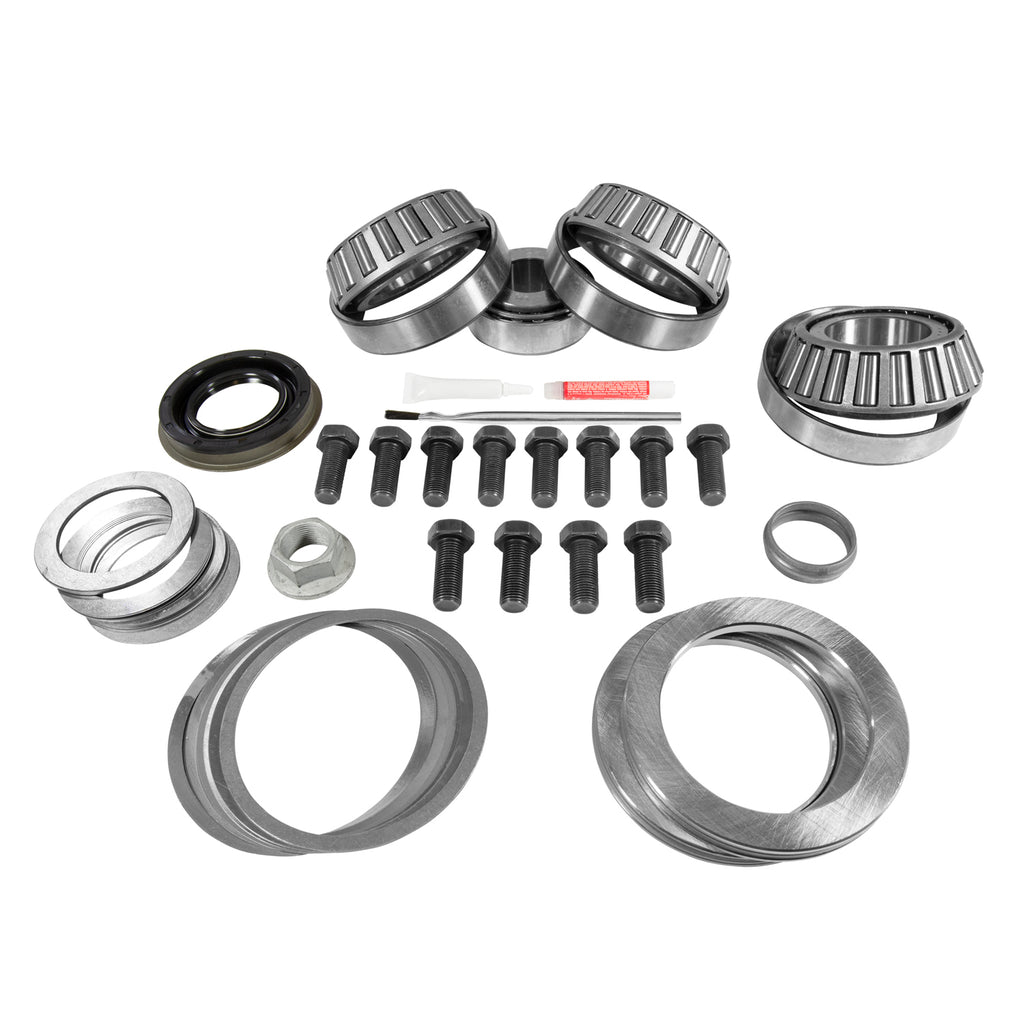

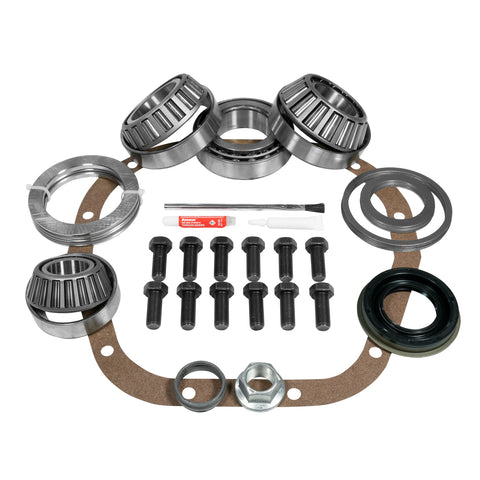

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) Pinion Bearings and Races
- Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve
- Complete Shims
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Ford F-150 1/2 Ton (2008-2010)
- Ford F-250 Super Duty 3/4 Ton (2008-2010)
- Ford F-350 Super Duty 1 Ton (2008-2010)
- Ford E-450 (2008-2010)
- Ford E-250 3/4 Ton (2008-2010)
- Ford E-350 1 Ton (2008-2010)
- Differential Model: Ford 10.5"
- Cover Bolt Quantity: 12
- Carrier Breaks: None
- Carrier/Axle Spline Count: 35
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 10.5"
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Size: 1/2" x 20 RH
- Pinion Diameter: 1.94"
- Pinion Spline: 31
