ClickCease 2007-2018 Jeep Wrangler JK - Dana 30 27 Spline Helical Style Rear Diff – Rigid Axle


2007-2018 Jeep Wrangler JK - Dana 30 27 Spline Helical Style Rear Differential Carrier

$906.96 $697.66


Limited Slip Differential

Rigid Axle

+ -

Jeep Wrangler JK Front D30 Limited Slip Differential


Package Includes:

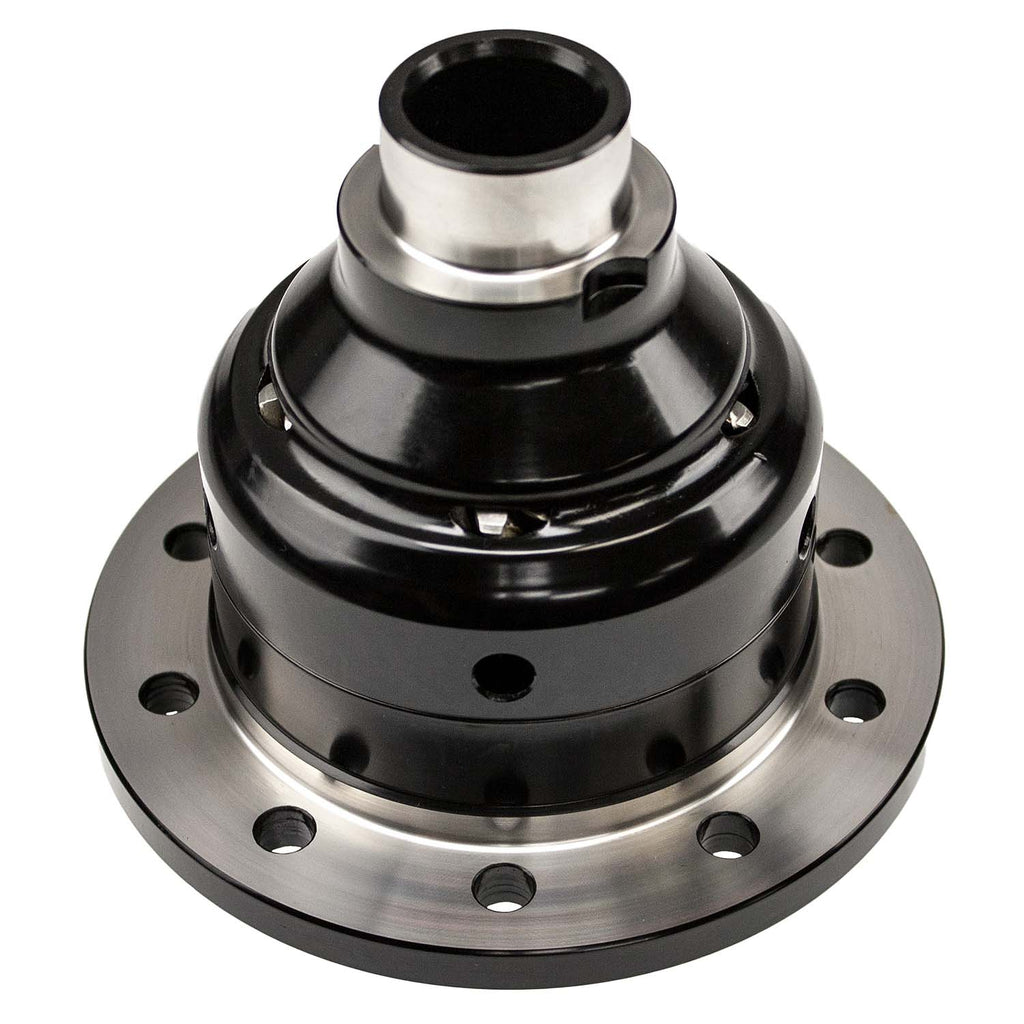

(1) Front Axle Helical Style Limited Slip Differential

- Our Rigid Axle, Detroit Truetrac style, "HELL" limited-slip differential unit uses 3x2 spiral gears for progressive and variable traction. This unit acts like a standard open carrier under normal driving conditions making it unobtrusive. Once a tire looses traction, or the terrain changes, the helical cut gears mesh together transferring torque to the high traction tire. Once traction on both sides resumes, the carrier goes back to normal operation. The carrier case is forged steel for strength and reliability. Since this unit does not have clutches and steels, it is completely maintenance free! Rigid Axle's helical-gear style limited slip posi is the perfect choice for daily drivers, weekend warriors, towing, basic off-road use, and street/strip applications. See below for some key features and tech specifications:

  • Fits Front Dana 30 Axle Only
  • For Use with 27 Spline Axles
  • Fully Machined, Forged Steel Case
  • 3x2 Spiral Gears for Progressive and Variable Traction
  • 100% Maintenance Free
  • 2 Year / 100,000 Mile Warranty
  • Non-Synthetic GL-5 Gear Oil Recommended
  • Synthetic Oils and Friction Modifier Not Recommended

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!


  • Jeep Wrangler JK Non-Rubicon (2007 - 2018)

  Dana 30 Front Specifics

  • Cover Bolt Quantity: 10
  • Differential Model: Dana 30 Front
  • Pinion Shaft Diameter: 1.376 Inch
  • Pinion Spline Count: 24
  • Ring Gear Bolt Quantity: 10
  • Ring Gear Diameter: 7.125 Inch
  • Ring Gear Material: Heat Treated 8620 Steel
  • Ring Gear Rotation: Reverse
