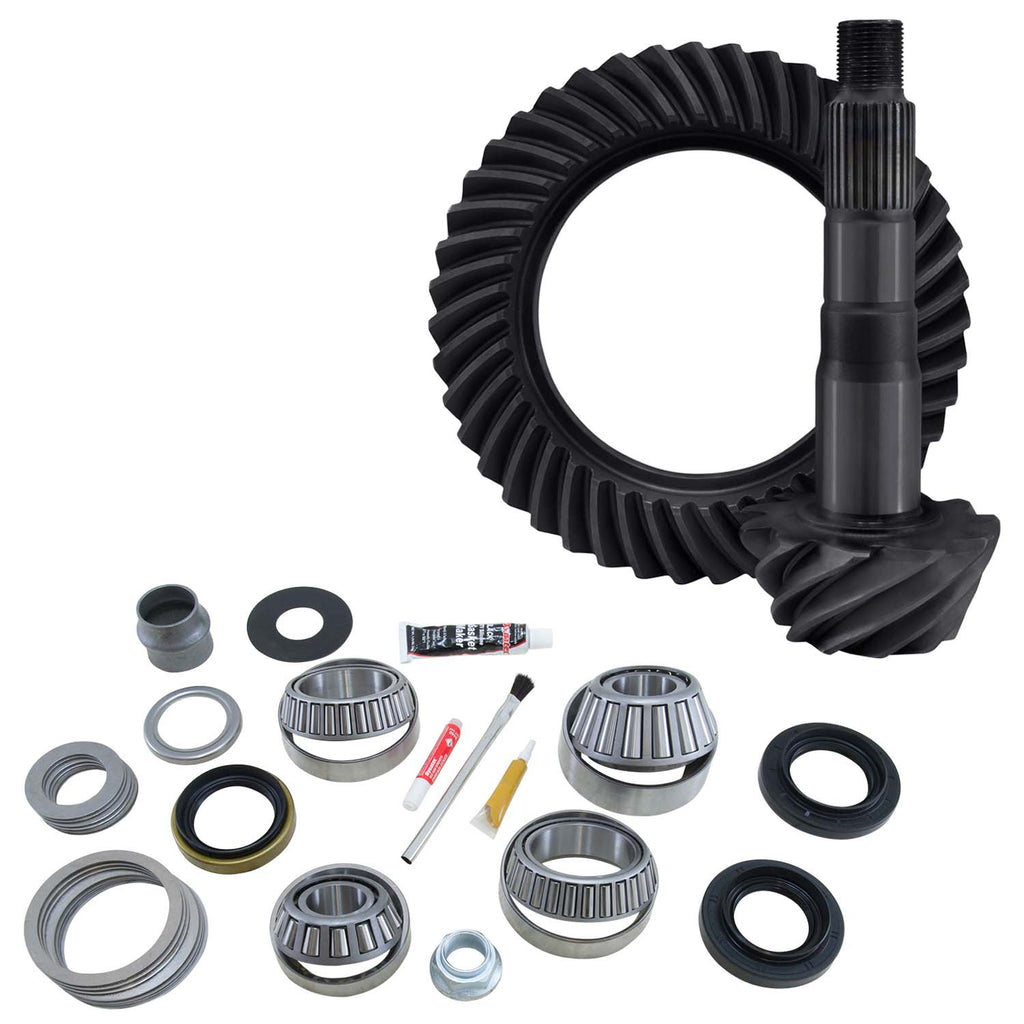

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Bearing Install Kit

- *Note: Fits 3.91 and up carrier. From year 1985 to 2002 the pinion spline is 27. From 2003 to 2007 the pinion spline count is 29.

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

• Both (Inner & Outer) Pinion Bearings and Races
• Carrier Bearings and Races
• Pinion and Carrier Shims
• Pinion Seal
• Pinion Nut
• Ring Gear Bolts
• Crush Sleeve
• Complete Shims
• Threadlocker
• RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Toyota Tacoma (2005-2020)
• Toyota 4Runner (2003-2021)
• Toyota FJ Cruiser (2007-2014)

• Differential Model: Toyota 8" IFS
• Cover Bolt Quantity: 3rd Member
• Carrier Breaks: None
• Ring Gear Bolt Quantity: 10
• Ring Gear Diameter: 8.0"
• Ring Gear Rotation: Reverse
• Ring Gear Material: 8620 Steel
• Pinion Diameter: 1.378"
• Pinion Spline: 27 (1985-2002), 29 (2003-2007)
