Chrysler 9.25" Front - Ring & Pinion

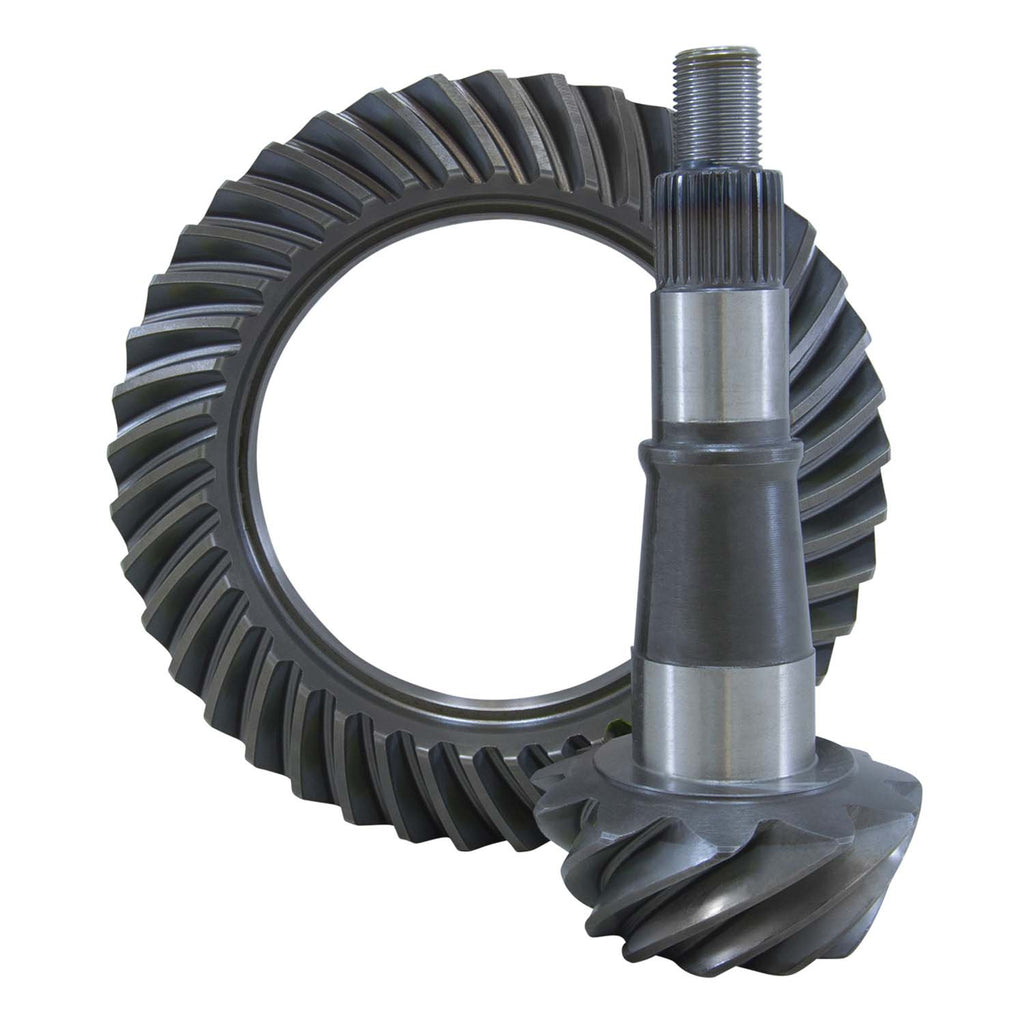

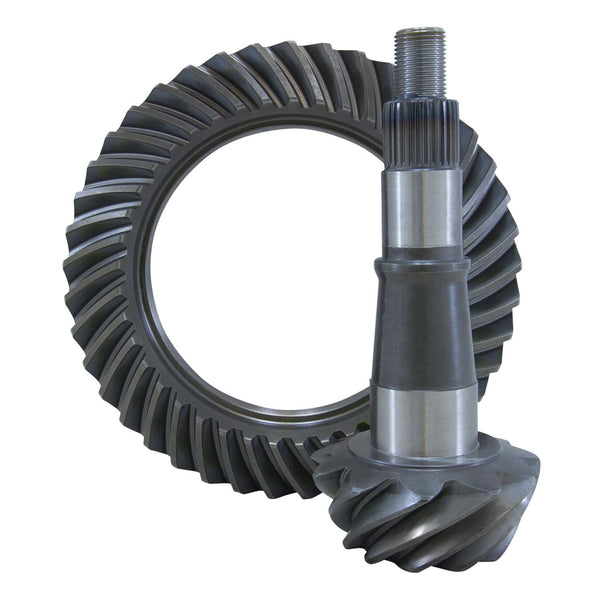

(1) Ring and Pinion Gear Set (Choose Ratio Above)
- *Note: This ring & pinion gear set requires a Chrysler 9.25" 2007-2014 loaded carrier for 2003-2006 applications. Contact support if you need help figuring out what differential you have.
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Dodge Ram 2500 3/4 Ton (2003-2016)
- Dodge Power Wagon (2005-2015)
- Dodge Ram 3500 1 Ton (2003-2016)
- Dodge Ram 1500 1/2 Ton (2006-2013)
Chrysler 9.25" Front Specifics
- Differential Model: Chrysler 9.25" Front
- Cover Bolt Quantity: 14
- Carrier Breaks: None
- Carrier/Axle Spline Count: 33
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 9.25"
- Ring Gear Rotation: Reverse
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Size: 12mm x 1.5 LH
- Pinion Diameter: 1.875"
- Pinion Spline: 29
