Ford 8.8" IFS - Ring & Pinion

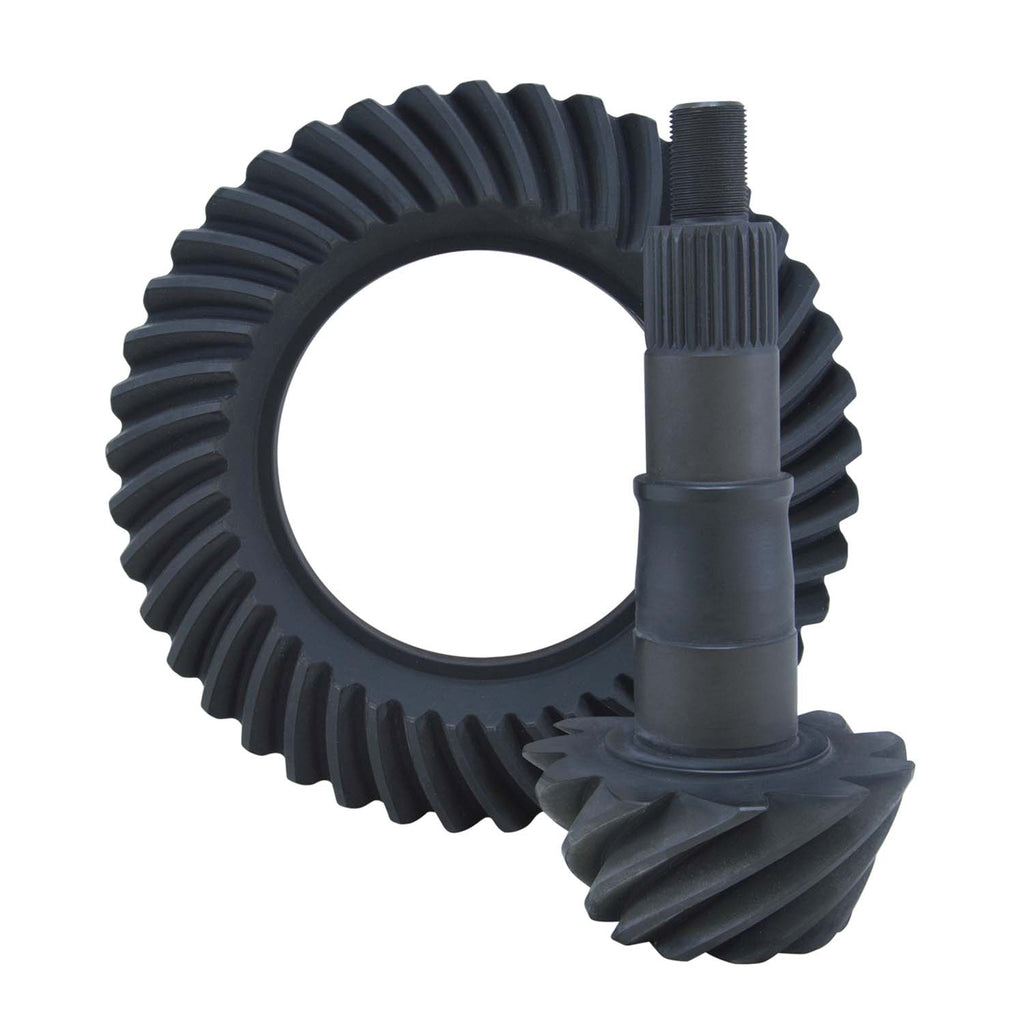

(1) Ring and Pinion Gear Set (Choose Ratio Above)
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
- Ford F-150 1/2 Ton (1997-2019)
- Ford Expedition (1997-2014)
- Ford F-150 Raptor Edition (2010-2015)
- Ford F-250 3/4 Ton (1997-1999)
- Lincoln Mark LT (2006-2008)
- Lincoln Navigator (1998-2014)
- Differential Model: Ford 8.8 IFS"
- Cover Bolt Quantity: 10
- Carrier Breaks: None
- Carrier/Axle Spline Count: 31
- Ring Gear Bolt Quantity: 10
- Ring Gear Diameter: 8.8"
- Ring Gear Rotation: Reverse
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Size: 7/16" x 20 RH
- Pinion Diameter: 1.626"
- Pinion Spline: 30
