1986-1998 Toyota 7.5" IFS V6 - Ring & Pinion Gear Package w/ Master Bearing Kit

$990.70 $617.46


TOY7.5-488-RA TOY7.5MK-F

Gear & Install Package

Rigid Axle

Qty:
+ -

Toyota 7.5" Gear Package

  Description

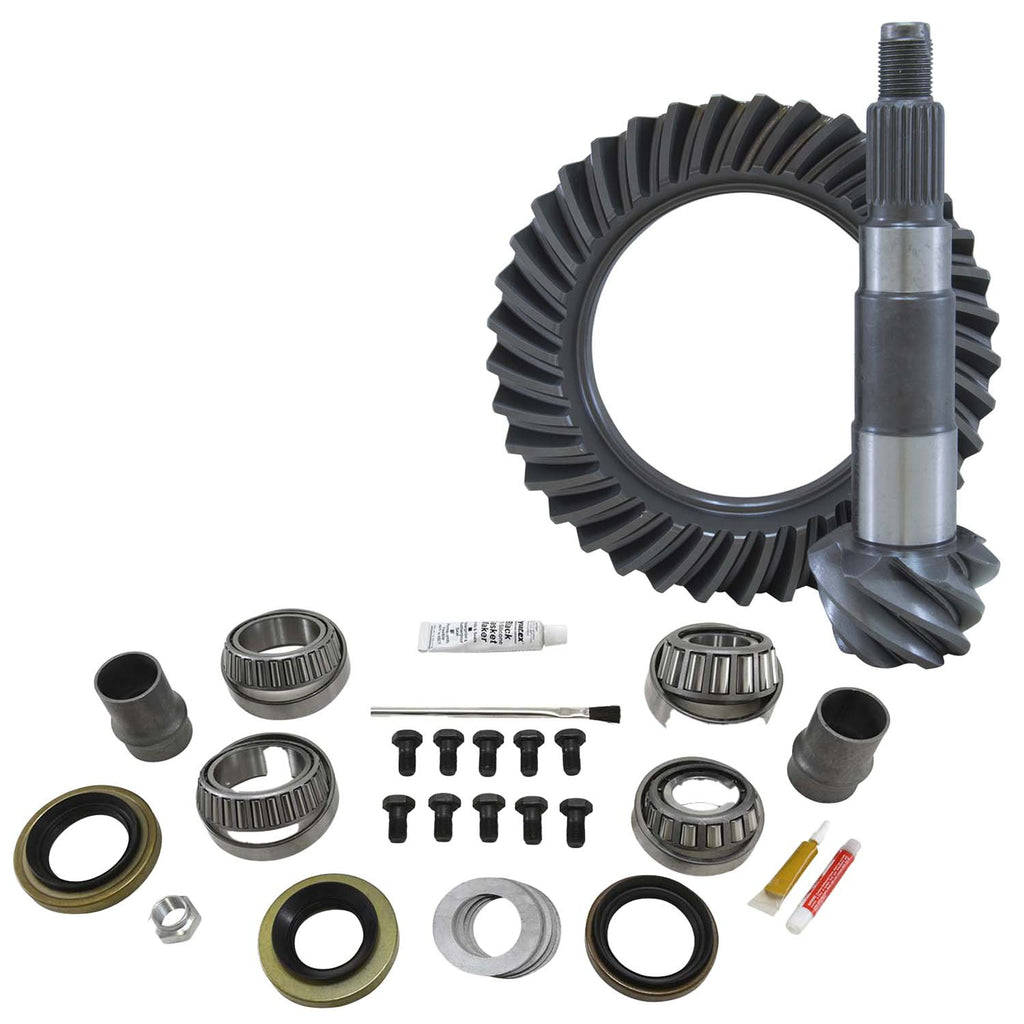

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) IFS V6 Differential Master Bearing Install Kit


- *Note: This gear package fits 1986-1998 Toyota V6 Front applications that came with standard rotation ring and pinions from the factory.

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) Pinion Bearings and Races
  • Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve
  • Complete Shims
  • Threadlocker
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Toyota T100 (1993-1998)
  • Toyota 4Runner (1986-1995)
  • Toyota Hilux Pickup (1986-1997)
  • Toyota Pickup (1986-1995)

  Specifics

  • Differential Model: Toyota 7.5"
  • Carrier Breaks: None
  • Ring Gear Bolt Quantity: 10
  • Ring Gear Bolt Size: 11MM X 1.0
  • Ring Gear Diameter: 7.5"
  • Pinion Diameter: 1.378"
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Standard
  • Pinion Spline: 23
