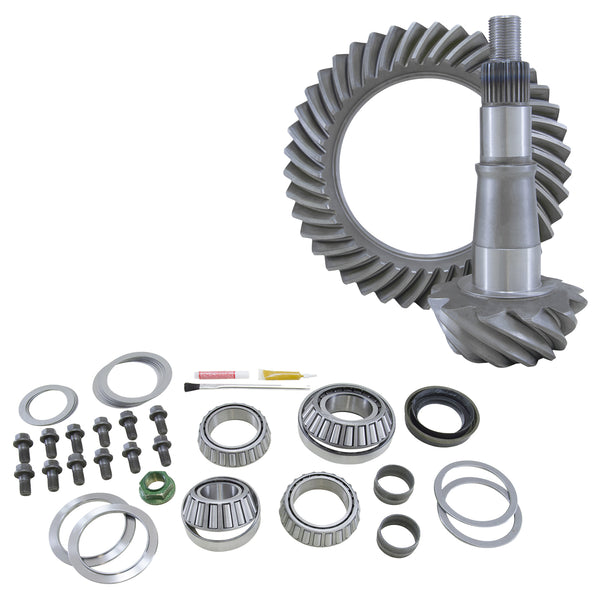

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Rear Master Bearing Install Kit

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

• Both (Inner & Outer) Pinion Bearings and Races
• Carrier Bearings and Races
• Pinion and Carrier Shims
• Pinion Seal
• Pinion Nut
• Ring Gear Bolts
• Crush Sleeve
• Complete Shims
• Threadlocker
• RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Cadillac Fleetwood (1991-1996)
• Chevrolet C1500 (1988-1997)
• Chevrolet C1500 Suburban (1992-1997)
• Chevrolet C20 (19781-1986)
• Chevrolet C20 Suburban (1981-1986)
• Chevrolet C2500 (1988-1997)
• Chevrolet C2500 Suburban (1992-1997)
• Chevrolet Express 1500 (1996-1997)
• Chevrolet Express 2500 (1996-1997)
• Chevrolet Express 3500 (1996-1997)
• Chevrolet G20 (1981-1995)
• Chevrolet G30 (1981-1996)
• Chevrolet K1500 (1988-1997)
• Chevrolet K1500 Suburban (1992-1997)
• Chevrolet K20 (1981-1986)
• Chevrolet K20 Suburban (1981-1986)
• Chevrolet K2500 (1988-1997)
• Chevrolet K2500 Suburban (1992-1997)
• Chevrolet R10 Suburban (1988)
• Chevrolet R1500 Suburban (1989-1991)
• Chevrolet R20 (1987-1988)
• Chevrolet R20 Suburban (1987-1988)
• Chevrolet R2500 (1989)
• Chevrolet R2500 Suburban (1989-1991)
• Chevrolet Suburban 1500 (1995-1997)
• Chevrolet Tahoe (1997)
• Chevrolet V10 Suburban (1988)
• Chevrolet V1500 Suburban (1989-1991)
• Chevrolet V20 (1987)
• Chevrolet V20 Suburban (1987-1988)
• Chevrolet V2500 Suburban (1989-1991)
• GMC C1500 (1988-1997)
• GMC C1500 Suburban (1992-1997)
• GMC C2500 (1981-1986)
• GMC C2500 (1988-1997)
• GMC C2500 Suburban (1981-1986)
• GMC C2500 Suburban (1992-1997)
• GMC G3500 (1981-1996)
• GMC K1500 (1981-1986)
• GMC K1500 (1988-1997)
• GMC K1500 Suburban (1981-1986)
• GMC K1500 Suburban (1992-1997)
• GMC K2500 (1981-1986)
• GMC K2500 (1988-1997)
• GMC K2500 Suburban (1981-1986)
• GMC K2500 Suburban (1992-1997)
• GMC P3500 (1983-1996)
• GMC R1500 Suburban (1988-1991)
• GMC R2500 (1987-1989)
• GMC R2500 Suburban (1987-1991)
• GMC Savana 2500 (1996-1997)
• GMC V2500 Suburban (1987-1991)
• GMC Yukon (1992-1997)

• Differential Model: GM 9.5" 14 Bolt
• Cover Bolt Quantity: 14
• Carrier Breaks: 3.42
• Carrier/Axle Spline Count: 33
• Ring Gear Diameter: 9.5”
• Ring Gear Rotation: Standard
• Ring Gear Material: 8620 Steel
• Ring Gear Bolt Quantity: 12
• Ring Gear Bolt Size: 12MM x 1.5 LH
• Pinion Diameter: 1.876"
• Pinion Spline: 30
