1963-1982 GM 8.875" 12 Bolt Truck - Ring and Pinion Gear Set

$421.86


GM12T-308-RA

Ring & Pinion Gear Set

Rigid Axle

Qty:
+ -

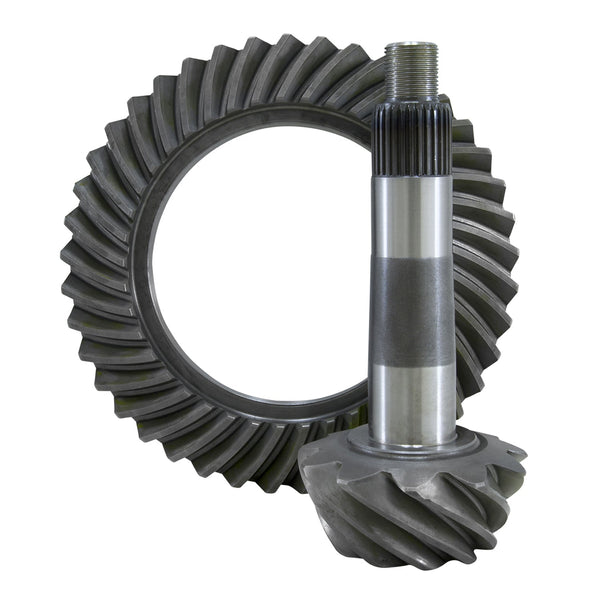

GM 8.875" 12 Bolt Truck Ring and Pinion Set

  Description

Package Includes:

(1) Ring and Pinion Gear Set (Choose Ratio Above)


- *Note: 1963-1964 12 Bolt Truck applications require a 30 spline yoke.

- *Note: The GM 8.875" 12 Bolt Truck differential has carrier breaks at 2.73 / 2.76-3.42 / 3.73. That means if you have 3.42 gears from the factory, and would like to run a 4.56 ratio, you will need to buy a thick gear, or a new carrier. Contact support if you need help figuring out what carrier you have.

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Chevrolet Blazer (1969-1974)
  • Chevrolet C10 (1975-1982)
  • Chevrolet C10 Panel (1965-1967)
  • Chevrolet C10 Pickup (1964-1974)
  • Chevrolet C10 Suburban (1967-1982)
  • Chevrolet C20 (1975-1981)
  • Chevrolet C20 Pickup (1969-1974)
  • Chevrolet C20 Suburban (1973-1981)
  • Chevrolet G10 (1975-1981)
  • Chevrolet G10 Van (1964-1974)
  • Chevrolet G20 (1975-1981)
  • Chevrolet G20 Van (1967-1974)
  • Chevrolet K10 (1975-1981)
  • Chevrolet K10 Pickup (1964-1974)
  • Chevrolet K10 Suburban (1967-1982)
  • Chevrolet K20 (1975-1981)
  • Chevrolet K20 Pickup (1969-1974)
  • Chevrolet K20 Suburban (1973-1981)
  • Chevrolet K5 Blazer (1975-1981)
  • Chevrolet P10 (1975-1980)
  • Chevrolet P10 Series (1965-1967)
  • Chevrolet P10 Van (1967-1974)
  • Chevrolet P20 (1975-1981)
  • Chevrolet P20 Series (1966-1967)
  • Chevrolet P20 Van (1968-1974)
  • Chevrolet Suburban (1965-1966)
  • GMC C15 (1975-1978)
  • GMC C15 Suburban (1975-1978)
  • GMC C15/C1500 Pickup (1967-1974)
  • GMC C15/C1500 Suburban (1967-1974)
  • GMC C1500 (1979-1982)
  • GMC C1500 Suburban (1979-1981)
  • GMC C25 (1975-1978)
  • GMC C25 Suburban (1975-1978)
  • GMC C25/C2500 Pickup (1969-1974)
  • GMC C25/C2500 Suburban (1969-1974)
  • GMC C2500 (1979-1981)
  • GMC C2500 Suburban (1979-1981)
  • GMC G1000 Series (1965-1966)
  • GMC G15 (1975-1978)
  • GMC G15/G1500 Van (1967-1974)
  • GMC G1500 (1979-1981)
  • GMC G25 (1975-1978)
  • GMC G25/G2500 Van (1967-1974)
  • GMC G2500 (1979-1981)
  • GMC Jimmy (1970-1981)
  • GMC K1000 Pickup (1966)
  • GMC K15 (1975-1978)
  • GMC K15 Suburban (1975-1978)
  • GMC K15/K1500 Pickup (1966-1974)
  • GMC K15/K1500 Suburban (1967-1974)
  • GMC K1500 (1979-1982)
  • GMC K1500 Suburban (1979-1982)
  • GMC P15 (1975-1978)
  • GMC P15/P1500 Van (1967-1974)
  • GMC P1500 (1979-1980)
  • GMC P25 (1975-1978)
  • GMC P25/P2500 Van (1967-1974)
  • GMC P2500 (1979-1981)
  • GMC PB1000 Series (1965-1966)
  • GMC PB15 Series (1966)
  • GMC PB1500 Series (1965)
  • GMC PB2500 Van (1966)

  Specifics

  • Differential Model: GM 8.875" 12 Bolt Truck
  • Cover Bolt Quantity: 12
  • Carrier Breaks: 2.73 / 2.76-3.42 / 3.73
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Bolt Size: 3/8 X 24 RH
  • Ring Gear Diameter: 8.875"
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Standard
  • Pinion Diameter: 1.438"
  • Pinion Spline: 30
