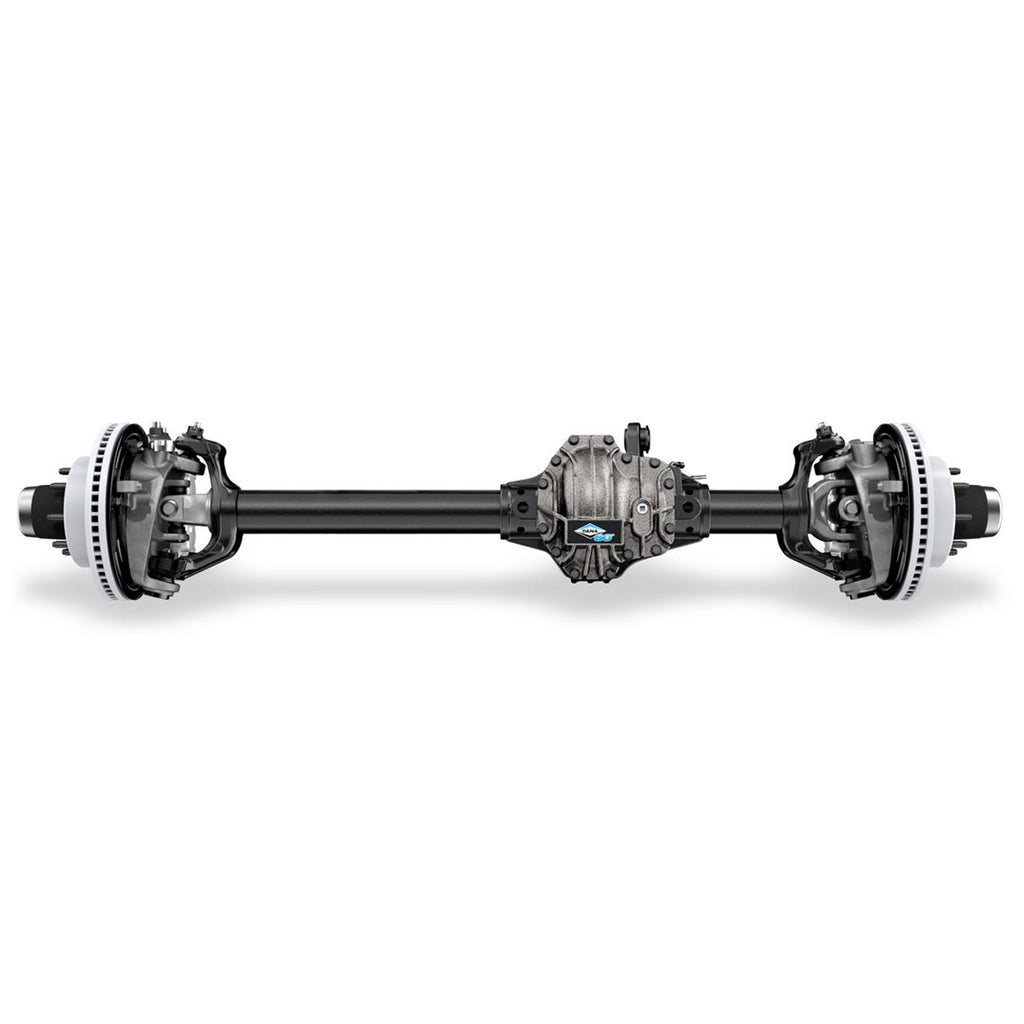

2018-Up Jeep Wrangler & 2020-Up Jeep Gladiator JL Front - Ultimate Dana 60 Crate Axle

$12,889.23


DS10056042

Complete Crate Axle

Rigid Axle

Qty:
+ -

Dana Spicer Ultimate Built Aftermarket Crate Axle

  Description

Crate Includes:

(1) Fully Built Ultimate Dana 60 Rear Crate Axle


- Take on the most brutal terrain with Ultimate Dana 60™ Bracketless Crate Axles®: the biggest, strongest axles out there are now available from Dana for almost any off-road vehicle. Built with genuine Spicer® components, these mighty Crate Axles feature upgrades that give you a competitive advantage on the trail.

- Off-road enthusiasts will appreciate the massive SPL® 70 u-joints, heavy-duty upgraded brakes, nickel chromoly steel axle shafts, durable Spicer performance ring and pinion gears, and the aggressive nodular iron diff cover. Front Crate Axles feature the Dana-exclusive high clearance housing, while the rear axles utilize ultra-strong 3-1/2" tubes with 3/8" wall thickness.

- Get the new Ultimate Dana 60™ Bracketless Crate Axle straight from Dana, weld on the brackets that fit your rig, and get ready to overcome even the toughest obstacles.

- Trust Ultimate Dana 60™ Bracketless axles to provide a higher torque load, and deliver peak protection from environmental contaminants. Get the performance and dependability of Ultimate Dana 60™ for your custom build today!


  • Massive Spicer® SPL® 70 u-joints – exclusive to Dana.
  • Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts.
  • Warn® 35 spline hub locks.
  • Dead spindle design.
  • Heavy-duty 8" x 6.5" wheel bolt pattern.
  • High-clearance carrier with ribbed housing design.
  • Available with either an Eaton® ELocker® or ARB® Air Locker®.
  • Heavy-duty 8 x 6.5" wheel bolt pattern.
  • Genuine Made in the USA Spicer® 10" (256 mm) ring and pinion gear.
  • Spicer® 1350 strap-style/half-round end yoke.
  • Axle tubes: 3-1/2" tubes with 3/8" wall thickness.
  • Upgraded heavy-duty brakes with plug-and-play ABS system.



- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

  Applications

  • Jeep Wrangler JL (2018-Up)
  • Jeep Gladiator JL (2020-Up)

  Dana 60 Front Specifics

  • Cover Bolt Quantity: 10
  • Differential Carrier Break: 4.10 / 4.56
  • Differential Case Design Type: Dana 60
  • Pinion Shaft Diameter: 1.625 (Inch)
  • Pinion Spline Count: 29
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 9.75 (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Reverse
  • End Yoke Style: Half Round
  • Axle Shaft U Joint Series: SPL70
  • Drive Shaft U Joint Series: 1350
  • Axle Shaft Material: Chromoly
  • Inner Axle Shaft Spline Count: 35
  • Outer Axle Spline Count: 35
