2014-2016 Chrysler 11.5" Ram 2500 Rear Conversion - Truetrac Style Limited Slip Posi Package w/ Master Bearing Kit

$4,158.66 $2,879.12

HELLPOSI-C11.5-RA C11.5-342-RA C11.5MK-CONV

Positraction, Gear & Install Package

Rigid Axle

+ -

Chrysler 11.5" - Hell Posi Package

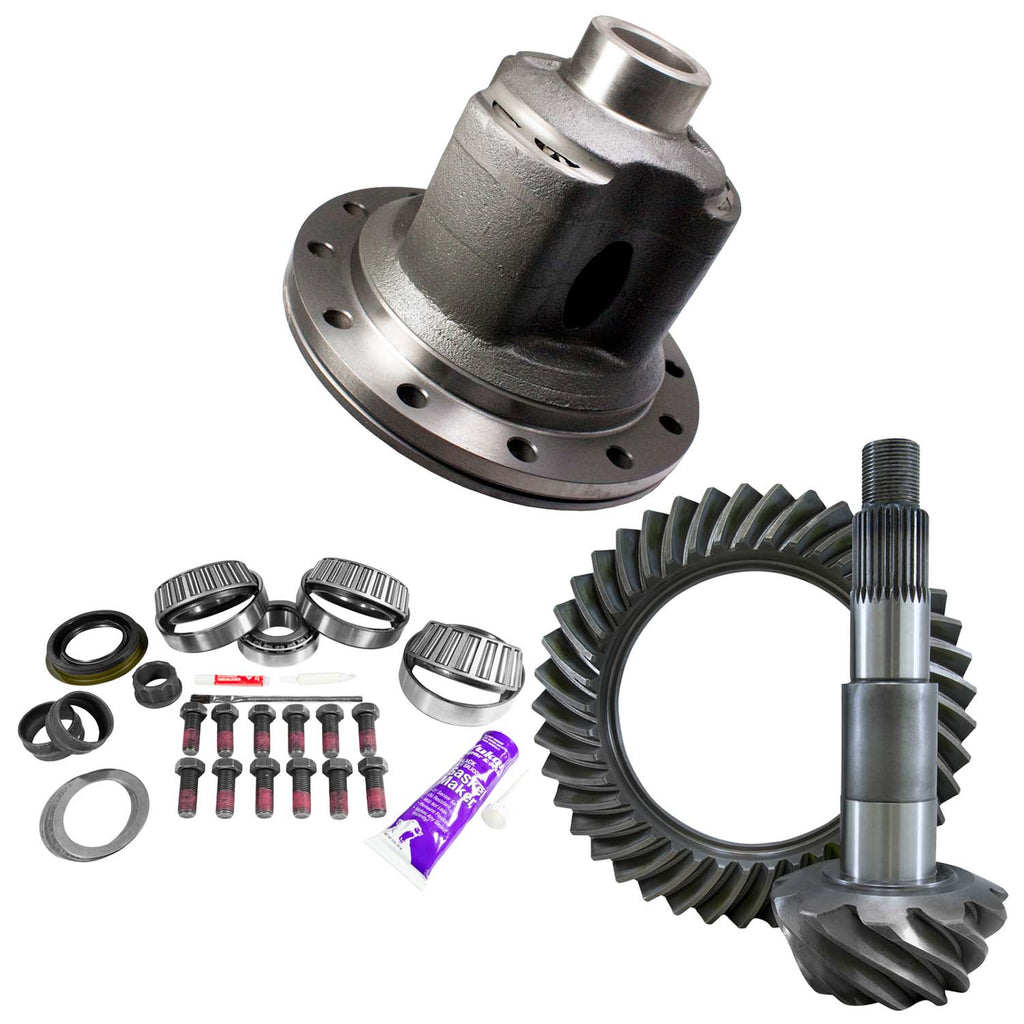

Package Includes:

(1) Rigid Axle "HELL" Positraction Carrier
(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Bearing Install Kit

- *Note: This conversion master bearing kit fits the 2014-2016 Ram 2500 with Chrysler 11.5" rear differential and coil spring suspension. This kit allows the utilization of 2003-2013 ring and pinion gear set with smaller 2.00"/1.625" pinion journals. Contact support if you need help figuring out what differential you have.

- Our Detroit Truetrac style, "HELL" limited-slip positraction unit uses 3x2 spiral gears for progressive and variable traction. This unit acts like a standard open carrier under normal driving conditions making it unobtrusive. Once a tire looses traction, or the terrain changes, the helical cut gears mesh together transferring torque to the high traction tire. Once traction on both sides resumes, the carrier goes back to normal operation. The carrier case is forged steel for strength and reliability. Since this unit does not have clutches and steels, it is completely maintenance free! The helical-gear style limited slip posi is the perfect choice for daily drivers, weekend warriors, towing, basic off-road use, and street/strip applications. See below for some key features and tech specifications:

  • Fully Machined, Forged Steel Case
  • 3x2 Spiral Gears for Progressive and Variable Traction
  • 100% Maintenance Free
  • 1 year warranty against Manufacturer defects
  • Non-Synthetic GL-5 Gear Oil Recommended
  • Synthetic Oils and Friction Modifier Not Recommended

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

  • Both (Inner & Outer) Pinion Bearings and Races
  • Carrier Bearings and Races
  • Pinion and Carrier Shims
  • Pinion Seal
  • Pinion Nut
  • Ring Gear Bolts
  • Crush Sleeve
  • Complete Shims
  • Threadlocker
  • RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!


  • Dodge Ram 2500 3/4 Ton (2014-2016)


  • Differential Model: Chrysler 11.5"
  • Cover Bolt Quantity: 14
  • Carrier Breaks: None
  • Carrier/Axle Spline Count: 30
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 11.5"
  • Ring Gear Rotation: Standard
  • Ring Gear Material: 8620 Steel
  • Ring Gear Bolt Size: 14mm x 1.5 RH
  • Pinion Diameter: 2.00"
  • Pinion Spline: 30
